Denali T3 rear turn signal kit Harley-Davidson Pan America

This kit, specific to the Harley-Davidson Pan America, contains :

- 1 DENALI T3 Harley-Davidson Pan America connection cable (DNL.WHS.21200)
- 1 DENALI plate mount for T3 lights (LAH.T3.10200)
- 1 pair of DENALI T3 SWITCHBACK LED rear turn signals (DNL.T3.10300)

DENALI part number: DNL.WHS.21200

This cable adapter provides a plug-&-play connection between the Denali T3 rear turn signals and the Harley-Davidson Pan America 1250. To install, simply plug the white connectors into the T3 and the other connectors into the Pan America's rear turn signals and brake lights.

Mounting instructions here

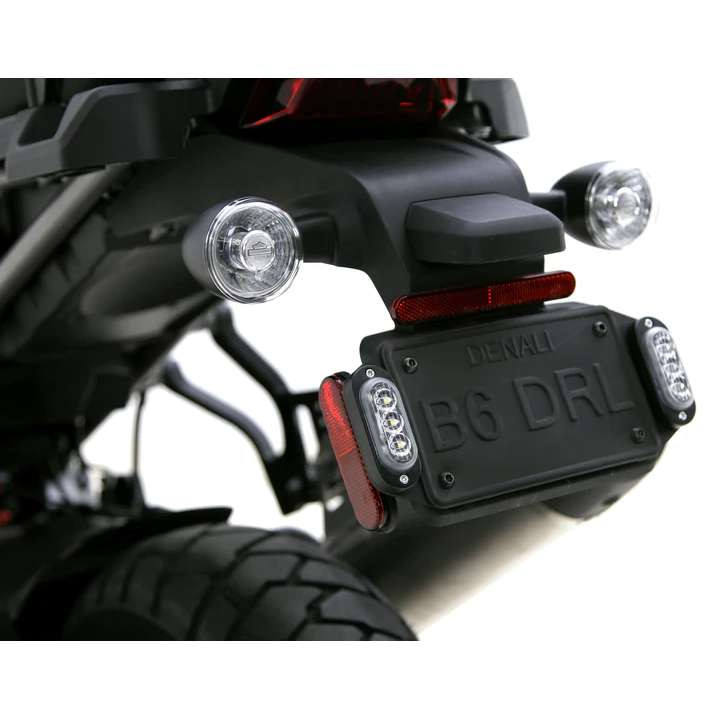

This low-profile steel mounting bracket lets you mount Denali T3 turn signal lights on the side of your license plate. The addition of extra brake and cornering lights on the sides of your license plate expands your light footprint and gives you far greater visibility than traditional one-piece light bars that mount under your plate.

Mounting center distance: min. 60 mm / max. 92 mm

DENALI reference: DNL.T3.10300

Installation instructions here

DENALI T3 SWITCHBACK rear turn signal lights are a unique and innovative approach to the common turn signal mixing amber turn signal light and red brake light in a modular system. This rear light features super-bright red LEDs when the braking function is activated, which change to an amber hue when your turn signal is activated. Unlike other toggle-type turn signals, the T3s feature two separate rows of high-power single-color LEDs, as opposed to the weaker two-color LEDs. The result is an incredibly bright light that rivals the intensity of 10-watt LED high beams.

T3 lights can be mounted in various positions on the front and rear of your vehicle (hand guards, mudguards, bodywork, crash bar...) thanks to the various mounting kits available (sold separately). This one includes 4 screws for mounting of your choice.

Features:

- Switching functionality: red run/brake and amber flasher
- Run/brake circuit: 25% running, 100% braking
- 180-degree viewing angle
- Six high-power LEDs (per light)
- Discreet design
- Easy connection to vehicle brake system
- Approved turn signal, brake and blinker lights

Specifications:

- Total consumption: 0.06 A, brake 0.25 A, flasher 0.55 A
- Input voltage: 12 V DC
- Size: 7.4 x 2.9 x 1.3 cm
- Weight: 36 g
- Gross lumens: 870
- Waterproof: IP67

Kit contents:

- T3 rear signal lights (x2)
- Connection cable (x2)
- Mounting screws (x4)
- Connectors (x8)
- Illustrated installation instructions
