Kit fire stop DENALI B6 on suitcases (x2)

Reference DENALI : DNL.B6.10200

B6 mounting notice here
Installation instructions LAH.DRL.10200 here

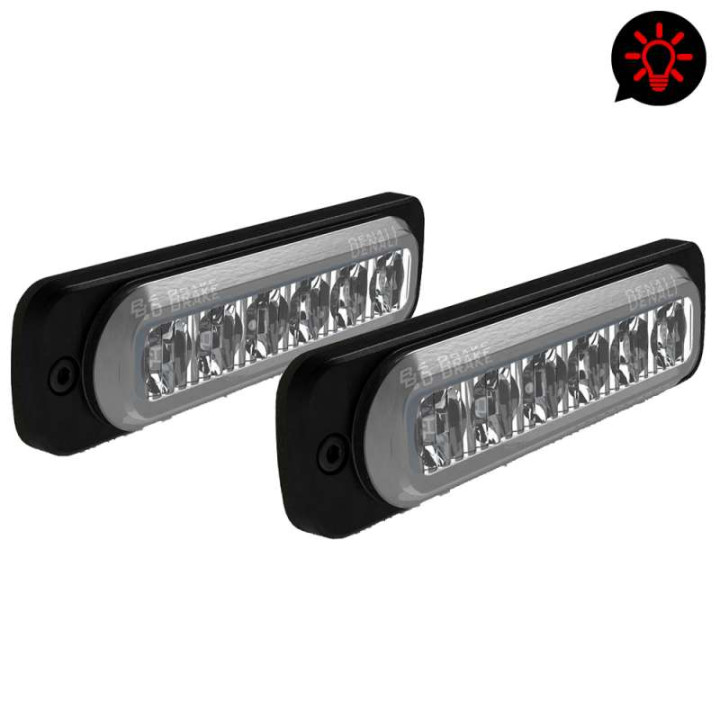

The B6 LED stop light has been specially designed to produce the strongest possible light from a compact and least bulky case possible. Six 1 watt electroluminescent diodes improve visibility with minimal congestion. Newly updated to operate as a stop lamp, the B6 offers improved functionality on conventional motorcycles as well as those that use the advanced functions of the CANsmart controller (sold separately).

Note that the "automatic stop fire" function activated according to the flash and deceleration configuration is only available if used with the controller DENALI CANsmart.

Composition of the kit : 2 lamps B6 + 2 fixing kits LAH.DRL.10200
LEDs 6 Diodes
Consumption : 6 Watts
Operating voltage 12 DC Volts
Functionality : Rear position lamp repeater + stop lamp
Dimensions (mm) : L 112 x 28 / fastening range: 102

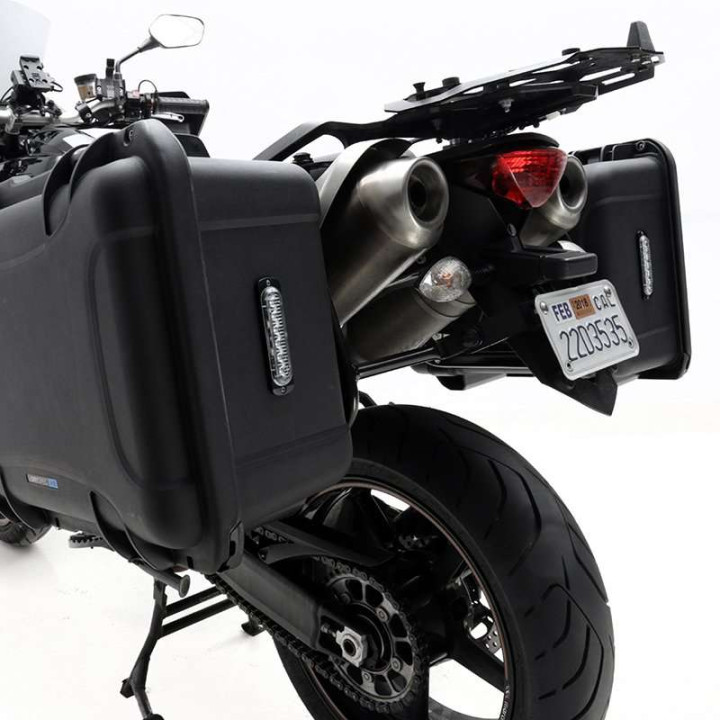

NB : Need to drill the suitcases for installation and cable passage, supplied piercing template (see notice). The fixations LAH.DRL.10200 are planned to preserve the sealing of your suitcases after drilling. We recommend that you provide watertight connections between the suitcases and the electric circuit of the motorcycle in order to remove the suitcases from their support when necessary.

DENALI reference: DNL.B6.003

Installation instructions here

The B6 LED brake light has been specially designed to produce the strongest possible light from the most compact, space-saving housing possible. Six 1-Watt light-emitting diodes improve visibility with minimal space requirements. Newly updated to operate as both a brake light and a daytime running light, the B6 offers enhanced functionality on conventional motorcycles as well as those using the advanced functions of the CANsmart controller (sold separately).

Note that the "automatic stop light" function, activated according to flash and deceleration settings, is only available when used with the DENALI CANsmart controller.

LEDs: 6 Diodes
Power consumption: 6 Watts
Operating voltage: 12 Volts DC
Functionality: Rear position + brake light repeater
Cable length: 75 cm

DENALI reference: LAH.DRL.10200

Installation instructions here

Fixing kit for your DENALI DRL "Daytime Running Light" or B6 stop light, for visibility even in daylight!

Sold individually
