Lighthouse kit DENALI S4 KTM 1290 SUPER ADVENTURE

Lighthouse kit DENALI S4 KTM 1290 SUPER ADVENTURE composed of:

- 1 S4 Central Fire Mounting Kit DENALI KTM 1290 SUPER ADVENTURE 21-
- 1 Additional fire DENALI S4 (unit)

Installation instructions here

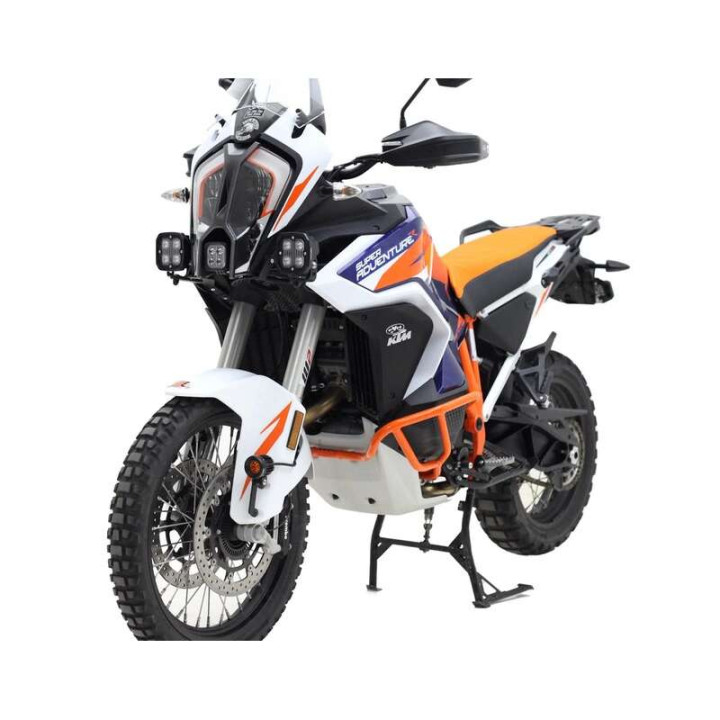

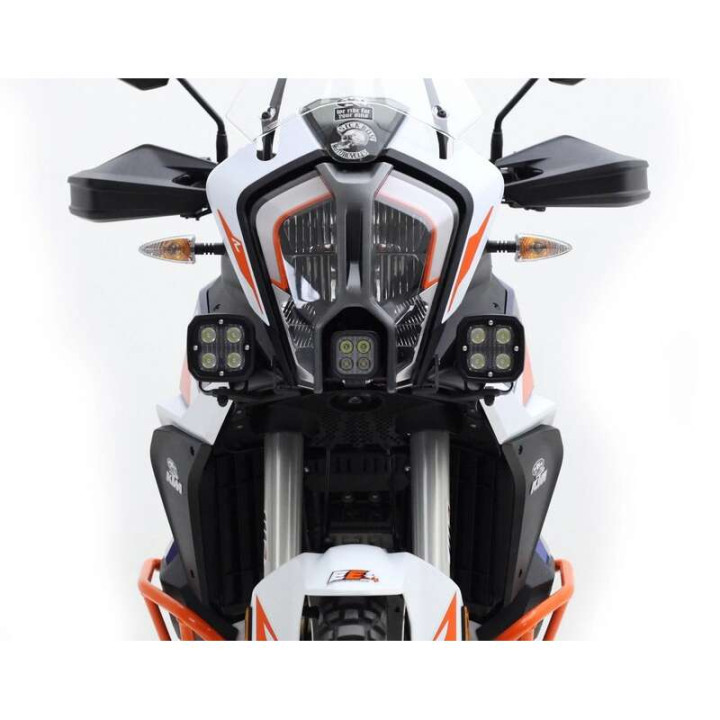

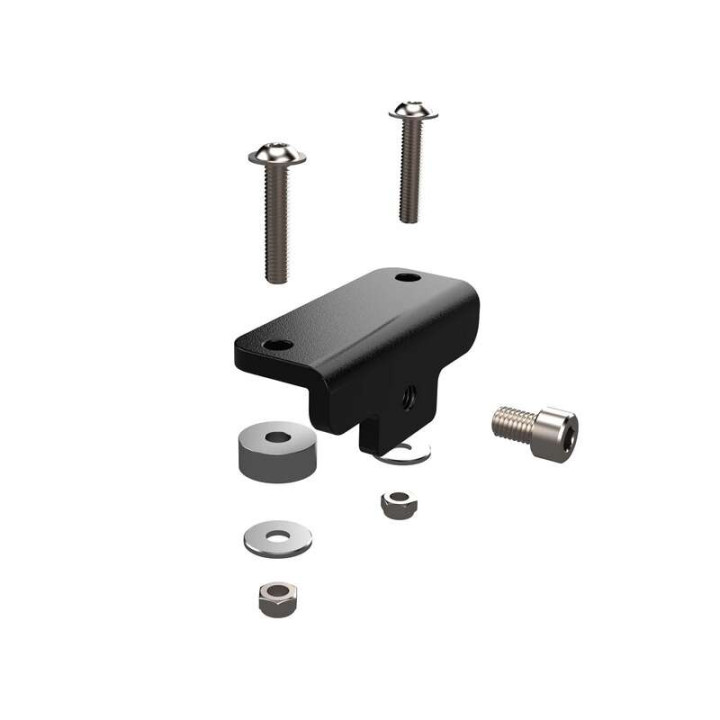

This light bracket allows you to mount a single Denali S4 lighting pod in the headlight in place of the optional radar unit. The bracket includes a sturdy steel support with an M8 mounting hole and all the necessary mounting hardware.

- Laser-cut steel bracket in black finish
- Corrosion-resistant
- Uses original mounting points without modification
- Allows installation of a Denali S4 light
- Designed and manufactured in the USA

Compatible with : KTM 1290 Adventure R/S 2021-2022 (without adaptive cruise control radar unit)

This kit is not compatible with the accessory radar unit. If you already have it, keep it and use one of the standard lighting brackets to add auxiliary lighting.

Not sure which Denali lights are right for you? Check out our beam/size comparisons below:
BEAM COMPARISON
SIZE COMPARISON

The DENALI S4 additional light is the first DENALI lamp developed as part of the new S-Series product range. With over 3,000 lumens, the S4 is the best-value light on the market! The S4 features the same high-intensity LEDs as the D-Series luminaires, but uses one-piece optics and a sealed beam to reduce the number of unique components.

The lens features two "Flood" and two "Spot" optics to create the ultimate hybrid beam: extra-wide near vision and a piercing beam in a single housing.
DrySeal™ waterproof and submersible light housings that can withstand the most extreme environments.
LiveActive™ thermal management keeps LEDs cool, preventing loss of light output due to overheating

Light sold individually, without harness or accessories, to replace a damaged light or to reinforce your existing equipment. The beacon is pre-wired for Plug&Play installation on DENALI beams. Split Y cables are sold separately.


LEDs: 4 x 7 Watt LEDs
Power consumption: 2.3A
Total luminous flux: 3066 lumens
DataDim™ compatible: Yes
Operating voltage: 12 Volts DC
Housing: Fully waterproof DrySeal (submersible)
Mounting: Stainless steel bracket with hole for M8 screw
Optics dimensions: 70m(Ø) x 4.4mm(D)
Light beam distance: 115m
Light beam width: 23m
