Motogadget MOTOSCOPE PRO digital motorcycle computer

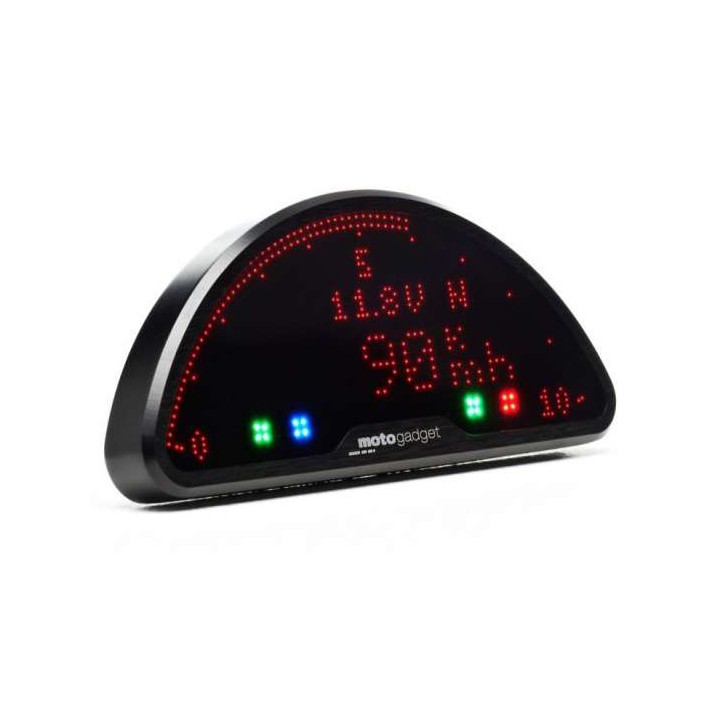

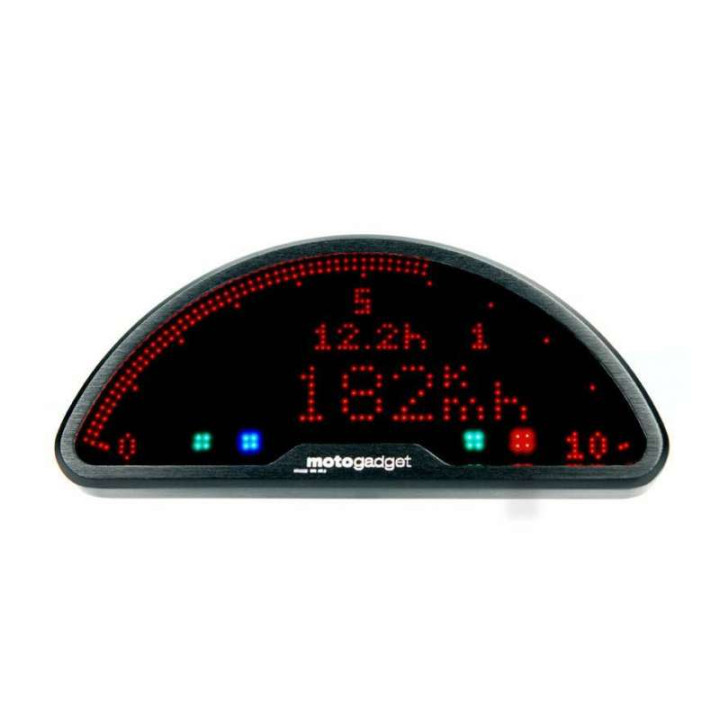

MOTOSCOPE PRO is an extremely complete new-generation meter. Cutting-edge technology has resulted in a slim mass-produced aluminum case (only 11 mm). The 734 ultra-high-brightness LEDs that make up the display are controlled by a 16-bit processor and enable perfect visualization whatever the lighting conditions, notably thanks to automatic lighting correction.

The displays are fully customizable, and you can choose to view different information according to your needs, from gear engaged to battery voltage, speed, rpm... RPM can be displayed numerically or as a bar graph.

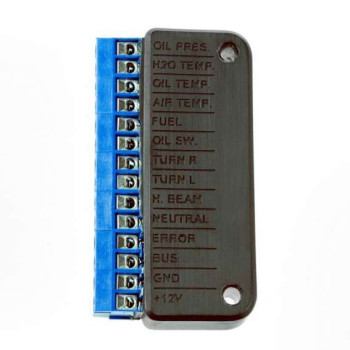

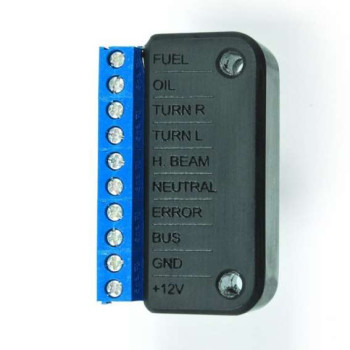

4 pre-installed green, red and blueLEDs allow you to indicate information on other motorcycle parameters via digital inputs, which you can easily connect to Motogadget's Breakout Box. The Breakout Box can also be connected directly to the Can-bus of certain motorcycles (Triumph, HD, etc.). This makes it a very versatile and versatile meter.

The meter is supplied with 55 cm of cable, an M5x25 speed sensor with 150 cm of cable, a fuse and stainless steel mounting screws.

- Digital engine speed (bar graph): 0-6 / 8 / 10 / 12 / 14 / 16 / 18,000 rpm
- Analog (digital) motor speed: 0 - 20,000 rpm
- Speed (via original signal or supplied sensor): 0 - 350 Km/h
- Partial distance (daily) trip A: 0 - 999.99 Km
- Partial distance (daily) trip B : 0 - 999,99 Km
- Clock : 23:59 h/min
- Total distance : 250 000 Km
- Time since last reset: 0 - 9999.5 h
- Travel time: 0 - 99:59 h/min
- Shiftlight settings: 0 - 20,000 rpm
- Voltage: 9 - 18 volts
- Low voltage alarm: activates if voltage falls below 11 volts
- Instant acceleration: 0 to +/- 1.5 G
- Average speed: 0 - 350 Km/h
- Max. speed: 0 - 350 Km/h
- Max rpm: 0 - 20,000 rpm
- Max positive acceleration: 0 to +1.5 G
- Max negative acceleration: 0 to -1.5 G
- Engaged gear ratio: neutral to 6
- Green LED (with Breakout Box A or B) : Neutral
- Green LED (with Breakout Box A or B) : Turn signals
- Blue LED (with Breakout Box A or B) : Full headlights
- Red LED (with Breakout Box A or B) : Alarm of choice (e.g. oil pressure)
- Fuel gauge (with Breakout Box A or B): 0 - 100% with alarm level
- Air temperature (with Breakout Box B) : -20°C + 40°C with alarm level
- Water temperature (with Breakout Box B) : -40°C + 120°C with alarm level
- Oil temperature (with Breakout Box B): +40°C + 150°C with alarm level
- Oil pressure (with Breakout Box B): 0 - 8 bar with high/low alarm
- Dimensions and weight: 109 x 47 x 11 mm / weight 100 grams
