T3 light kit on plate support DENALI (DNL.WHS.23300TRIUMPH TIGER 660 SPORT

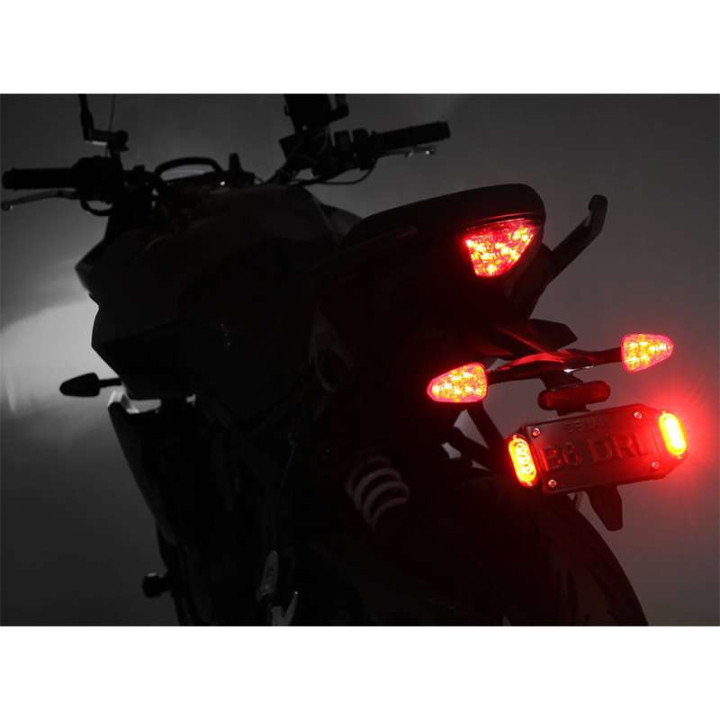

Add significant visibility to the back of your bike and give a modern and stylish look to your Tiger Sport 660. In addition to a better appearance, the rear T3s have a super glossy red traffic and brake lamp that flashes red in synchronization with your factory flashers!

Simply mount the T3 cables in place and connect them online to your rear flashing connector and factory stop fire.

Please note : Due to the OEM rear signal feature (broke and turn red), the T3 of the Tiger Sport 660 will work and brake in red, and will also flash in red when you turn. This is the best solution because it matches the factory functionality, but please note that the color of the orange flasher is not supported by this vehicle.

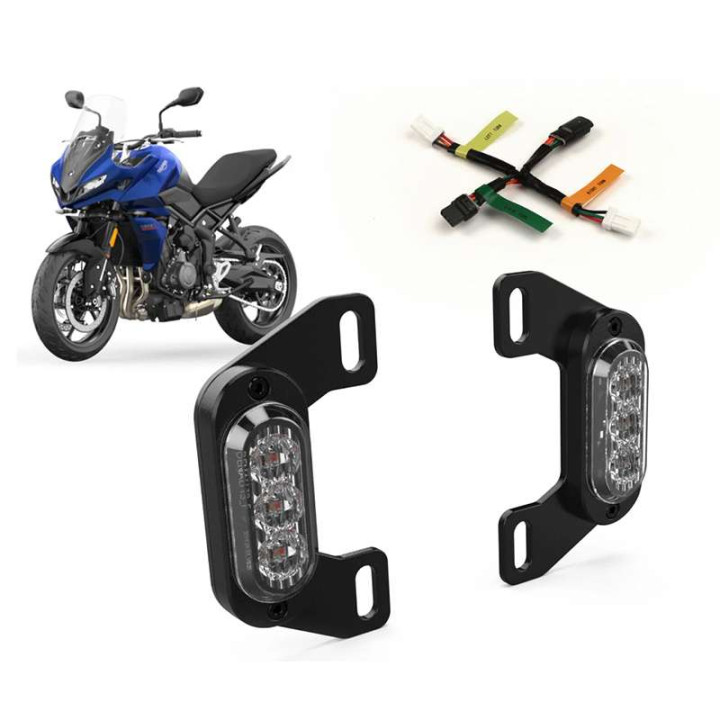

This kit includes a pair of rear turn signal ENALI T3 Switchback, a stop-fire wiring adapter for the Tiger Sport 660 as well as a mounting support kit on registration plate that positions the T3s at the ideal location at the back of your Tiger.

DENALI part number: DNL.WHS.23200

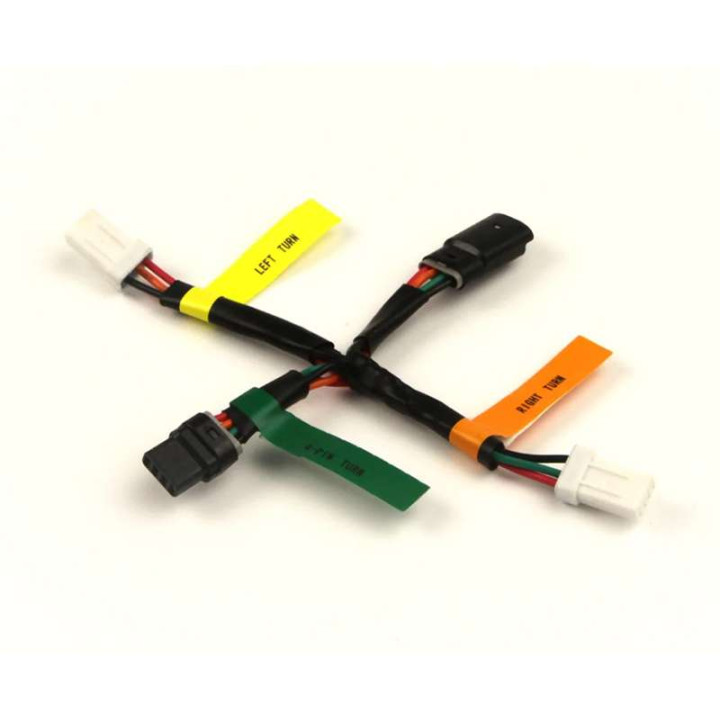

This cable adapter provides a plug-and-play connection between Denali T3 rear turn signals and the Tiger Sport 660. To install, simply plug the in-line connector into the rear indicator/brake light connector, then connect the T3s.

Please note: Due to the functionality of the OEM rear signal (red brake and turn), the T3s for the Tiger Sport 660 will operate and brake in red, and also flash red when you turn. This is the best solution as it corresponds to the factory functionality, but please note that the orange turn signal color is not supported by this vehicle.

Mounting instructions here
This low-profile steel mounting bracket lets you mount Denali T3 turn signal lights on the side of your license plate. The addition of extra brake and cornering lights on the sides of your license plate expands your light footprint and gives you far greater visibility than traditional one-piece light bars that mount under your plate.

Mounting center distance: min. 60 mm / max. 92 mm

DENALI reference: DNL.T3.10300

Installation instructions here

DENALI T3 SWITCHBACK rear turn signal lights are a unique and innovative approach to the common turn signal mixing amber turn signal light and red brake light in a modular system. This rear light features super-bright red LEDs when the braking function is activated, which change to an amber hue when your turn signal is activated. Unlike other toggle-type turn signals, the T3s feature two separate rows of high-power single-color LEDs, as opposed to the weaker two-color LEDs. The result is an incredibly bright light that rivals the intensity of 10-watt LED high beams.

T3 lights can be mounted in various positions on the front and rear of your vehicle (hand guards, mudguards, bodywork, crash bar...) thanks to the various mounting kits available (sold separately). This one includes 4 screws for mounting of your choice.

Features:

- Switching functionality: red run/brake and amber flasher
- Run/brake circuit: 25% running, 100% braking
- 180-degree viewing angle
- Six high-power LEDs (per light)
- Discreet design
- Easy connection to vehicle brake system
- Approved turn signal, brake and blinker lights

Specifications:

- Total consumption: 0.06 A, brake 0.25 A, flasher 0.55 A
- Input voltage: 12 V DC
- Size: 7.4 x 2.9 x 1.3 cm
- Weight: 36 g
- Gross lumens: 870
- Waterproof: IP67

Kit contents:

- T3 rear signal lights (x2)
- Connection cable (x2)
- Mounting screws (x4)
- Connectors (x8)
- Illustrated installation instructions
