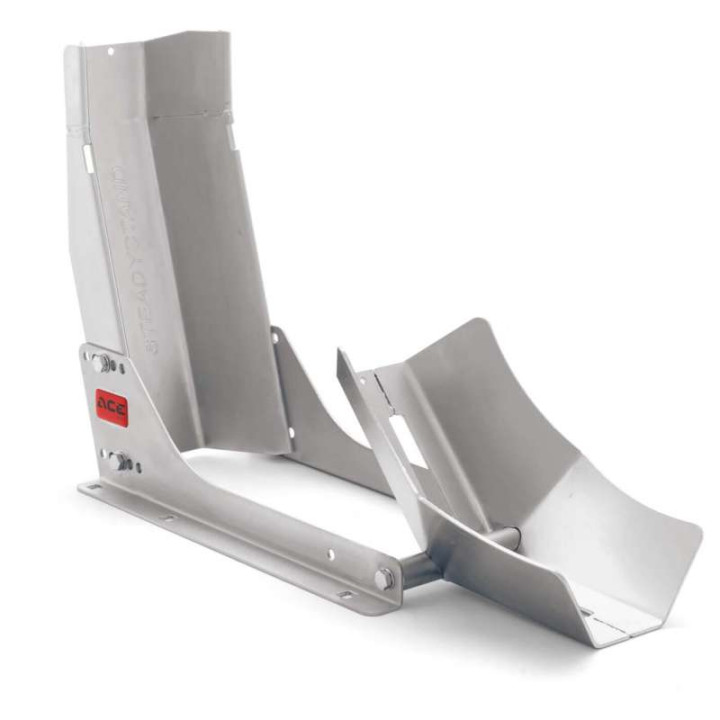

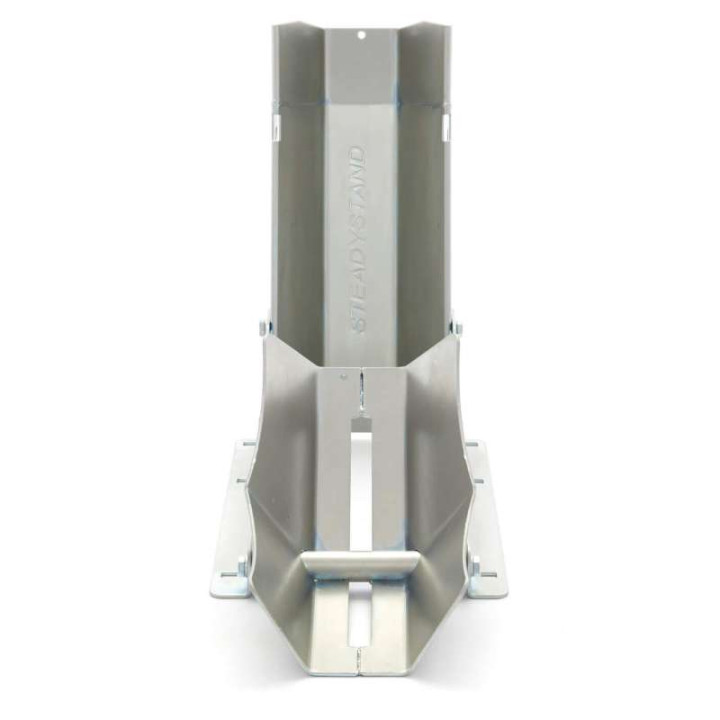

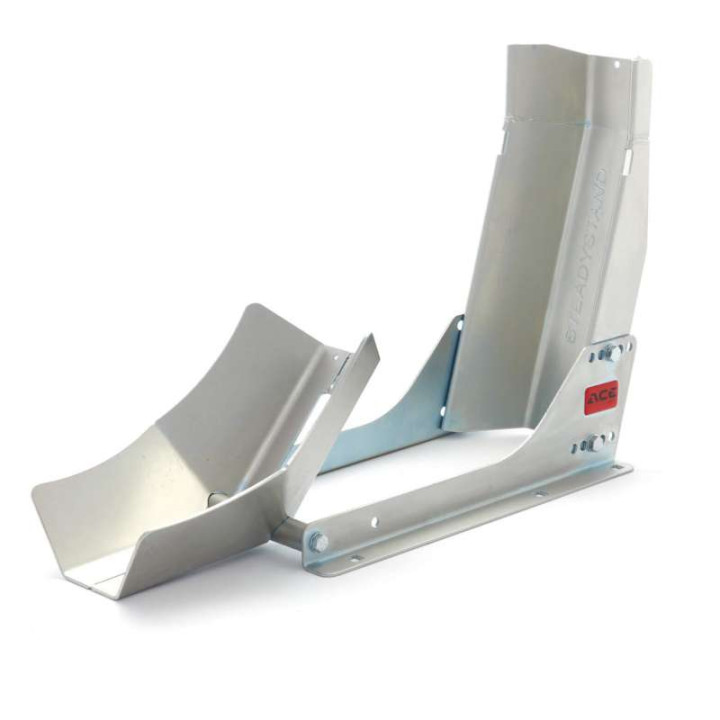

Acebikes STEADYSTAND FIXED 90-130 motorcycle wheel lock

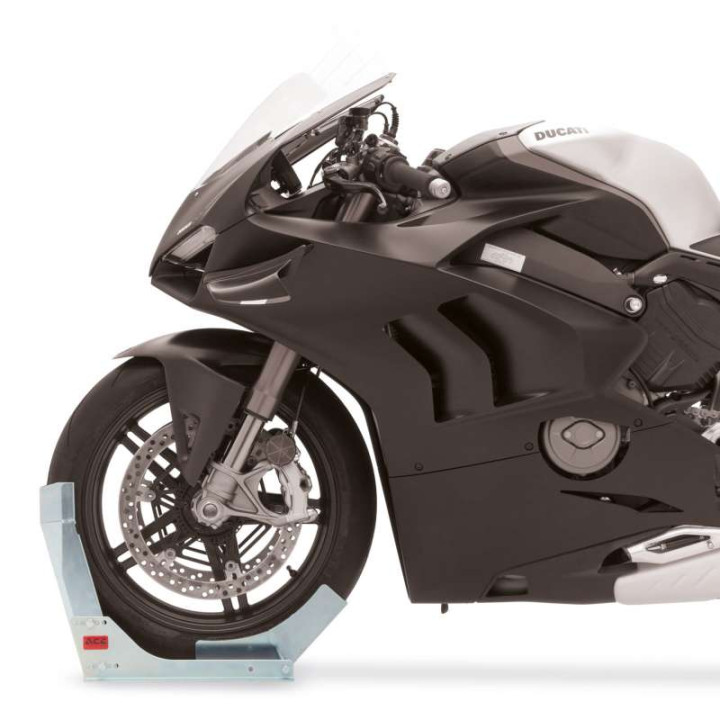

This model of wheel lock is ideal for transporting your two-wheeled vehicle on a trailer or in a van: once its base has been screwed onto your platform, you can load your motorcycle alone and without risk by engaging the front wheel in the wheel lock.

- Suitable for 10" to 19" wheels
- Tire width 90 to 130 mm (for other wheel sizes, see MULTI FIXED model)
- Weight: 5.320 Kgs
- 2 types of mounting possible: external mounting bracket (A) and internal mounting bracket (B) (see visual in image gallery)

- Dimensions for mounting A (bracket facing outwards) :
- Total width 210 mm
- Width of mounting center distance: 185 mm
- Floor space requirement: 315 x 210 mm

- Mounting dimensions B (bracket facing inwards) :
- Total width 156 mm
- Width of mounting spacing: 121 mm
- Floor space requirement: 315 x 156 mm

STEADYSTAND model also available for installation in a garage or workshop.

Assembly instructions here
