Additional light DENALI D3 LED TriOptic

Not sure which Denali lights are right for you? Take a look at our beam/size comparisons below:
BEAM COMPARISON

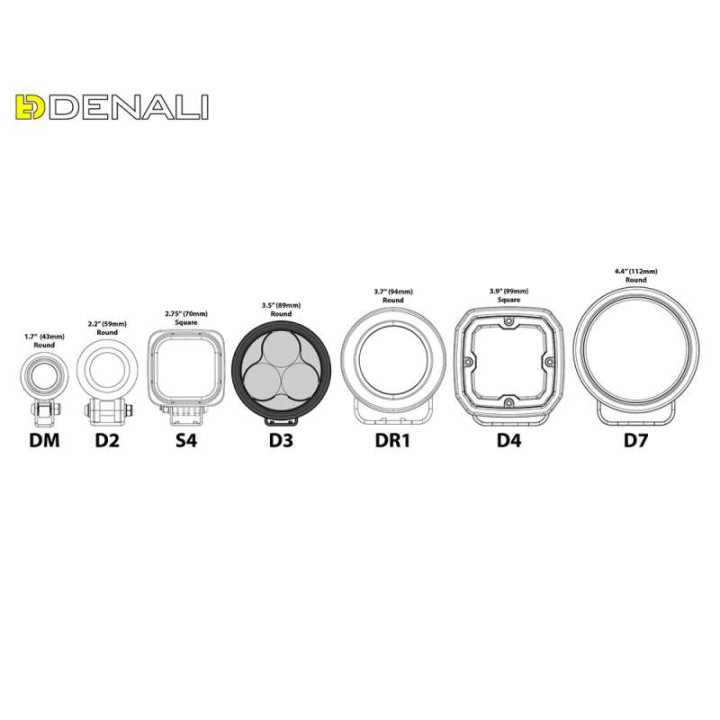

SIZE COMPARISON

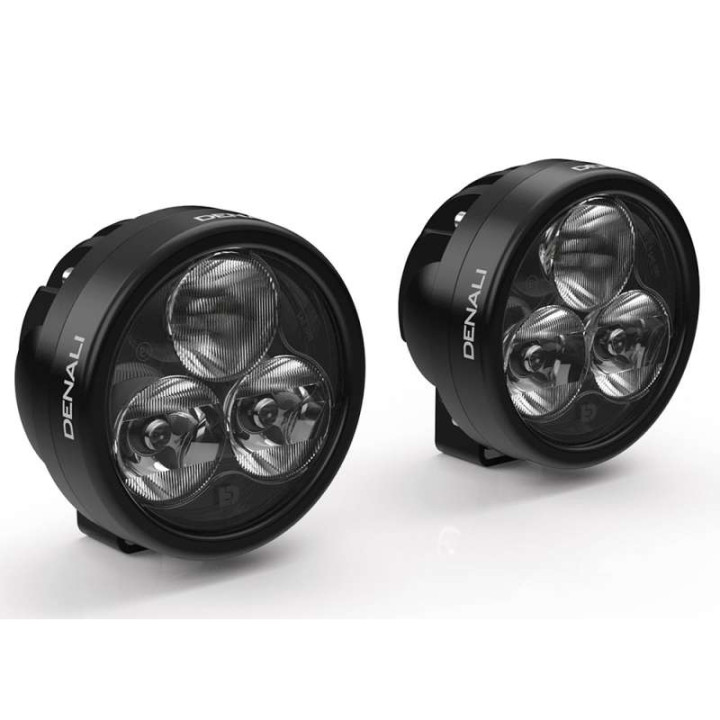

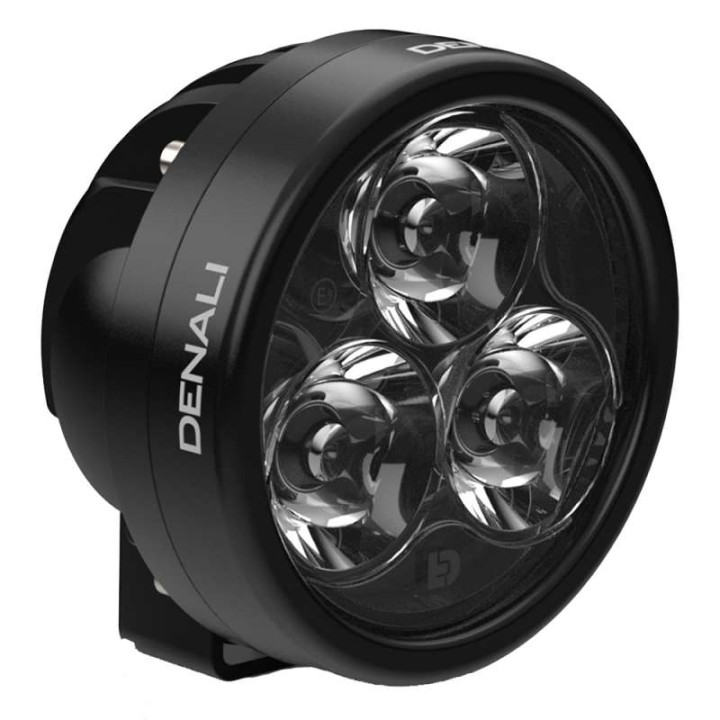

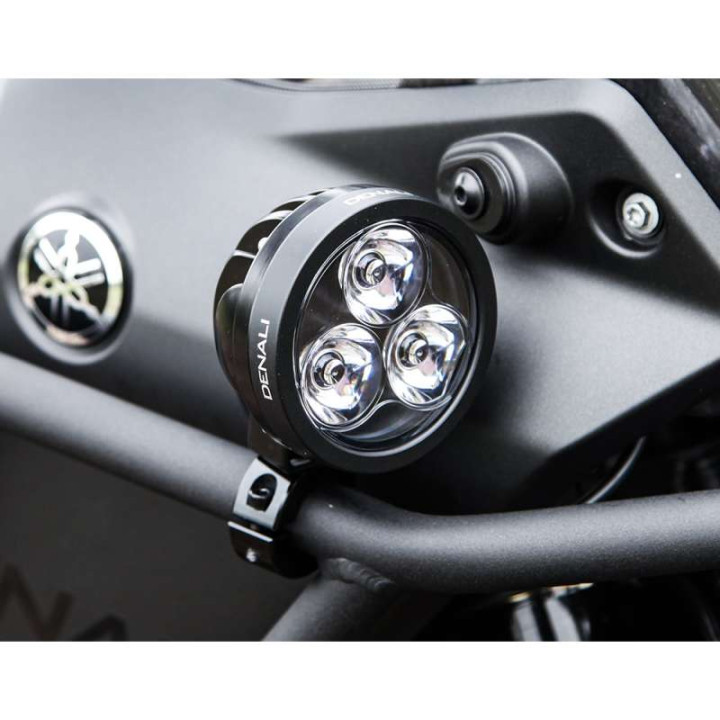

The new DENALI D3 LED headlamp builds on a decade of DENALI innovation to offer the most efficient 36-watt light on the market. This high beam features the TriOptic™ beam system, which includes a spotlight and a hybrid driving lens with each pod. Unlike previous TriOptic™ lights, the D3 light complies with ECE and SAE standards to deliver an impressive beam that's legal in North America and European Union countries.

But you can even use this light off-road, since the D3 spot lens has been designed for a maximum beam distance of over 580 meters at 1 lux (per pair). No other 36-watt light comes close. The spot beam is so impressive that it outshines the lights of leading competitors twice its size.

The Denali D3 is also available in an SAE and ECE-certified fog light version for drivers looking for a genuine, approved fog light with a wide beam and a clear horizontal cut-off.

N.B.: The light is sold individually.

Features:

- TriOptic ™ lens system: includes spot and hybrid lenses with each pod.
- Best-in-class approved spot and hybrid beams
- ECE and SAE/DOT certified
- High-intensity Cree LED series producing 2100 lumens per module
- Intelligent 3-wire DataDim™ dimming technology (compatible with all DENALI dimming controllers)
- DrySeal™: submersible waterproof light that can withstand the most extreme environments.
- Impact PC™ polycarbonate bezels won't crack, discolor or corrode like traditional aluminum bezels
- LiveActive ™ thermal management keeps LEDs cool, preventing loss of light output due to overheating

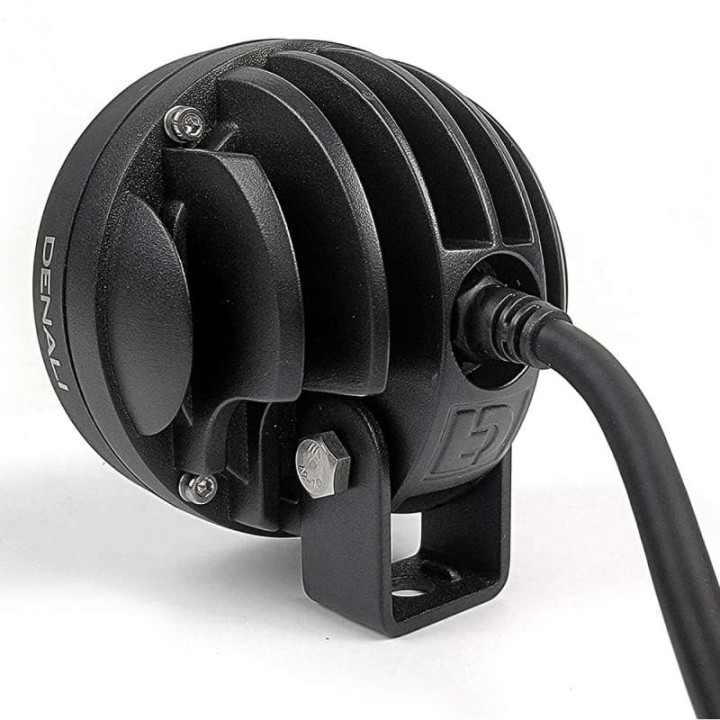

- Discreet mounting bracket with stainless steel hardware included
- Additional SAE/DOT and ECE-certified hybrid driving lens included (add-on lens installed)
- Amber and yellow lenses available (sold separately)

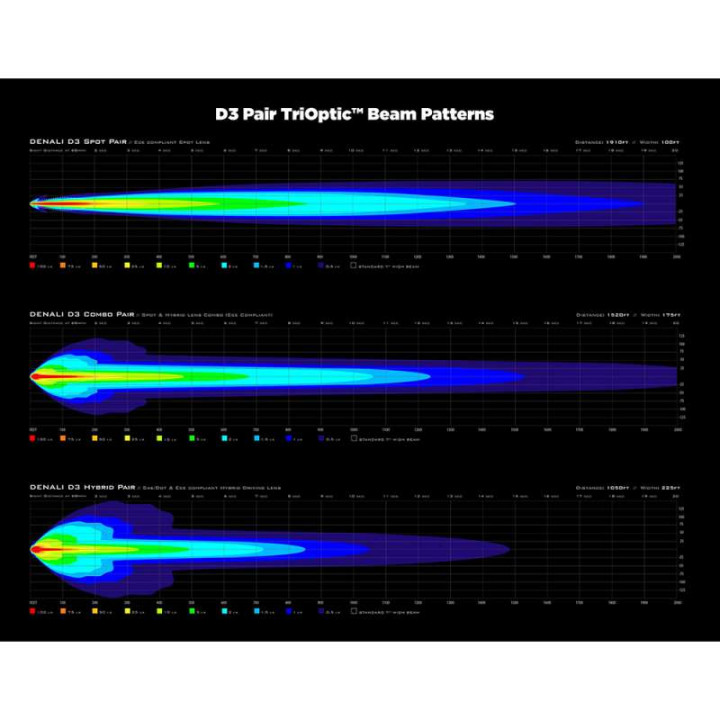

Beam performance (pair):

Spot beam
- Beam distance (at 1 lux): 582 meters
- Beam width (at 1 lux): 30 meters

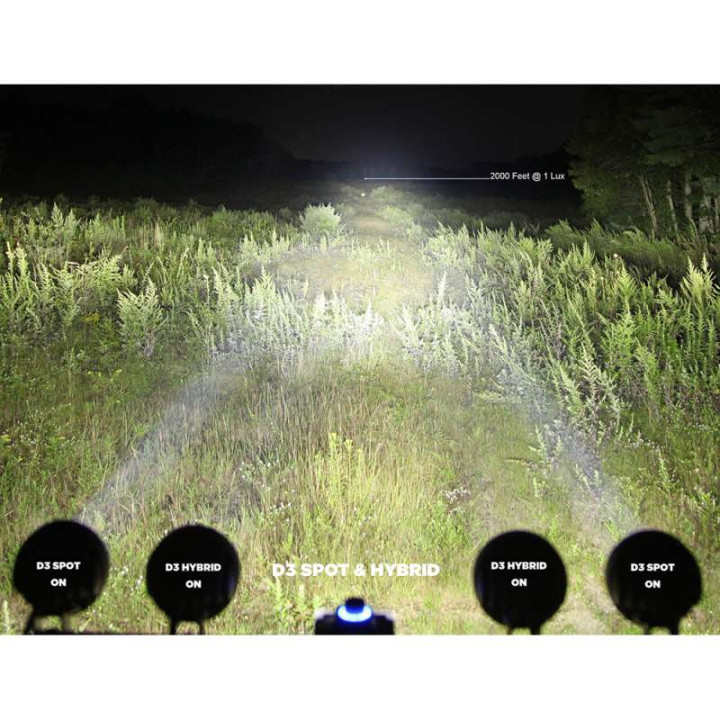

Combination beam (1 spot, 1 hybrid)
Beam distance (at 1 lux): 463 meters
Beam width (at 1 lux): 53 meters

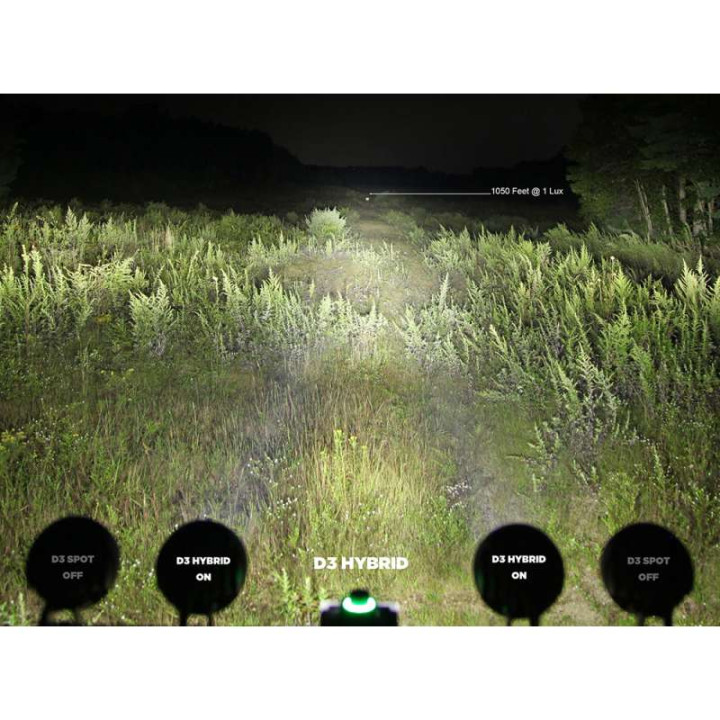

Hybrid beam
Beam distance (at 1 lux): 320 meters
Beam width (at 1 lux): 69 meters

Specifications:

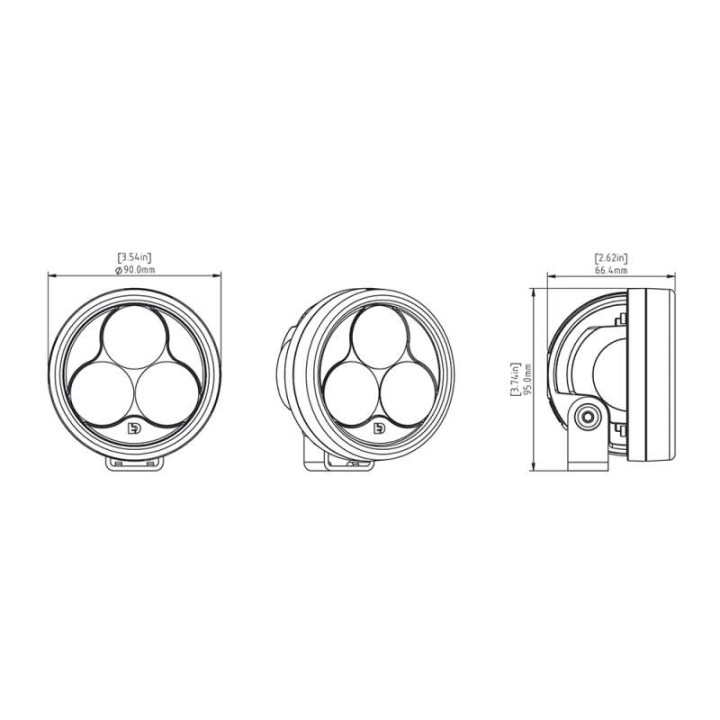

- Size: 90mm diameter x 66mm depth x 95mm height
- LEDs: 3 x 11-watt Cree XP-P leds
- Power consumption: 36 watts (3 amps)
- Lumens: 2100
- DataDim™ compatible: Yes
- Operating voltage: 9-32 V DC
- IP67 waterproof and submersible
- Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
- Spot Lens Certifications: ECE R112

Scope of delivery:

- 1 D3 LED light (spot lens installed)
- 1 hybrid lens for D3
- 1 hinge bracket with M8 stainless steel hardware
- Connection cable
- Illustrated installation instructions

Installation instructions here
