Base Quad Lock 360 Rectangle flat 2 holes

Discover the Quad Lock 360 range for a maximum of possible combinations for securing your smartphone!

Securely fasten your mount to flat surfaces with the Quad Lock 360 2-hole rectangular base.
This base uses the universal AMP hole-spacing standard, and the holes accept 10G or M5 countersunk fasteners.

10 mm spacers and x2 screws are supplied to connect the spacer to a Quad Lock 360 head or arm.

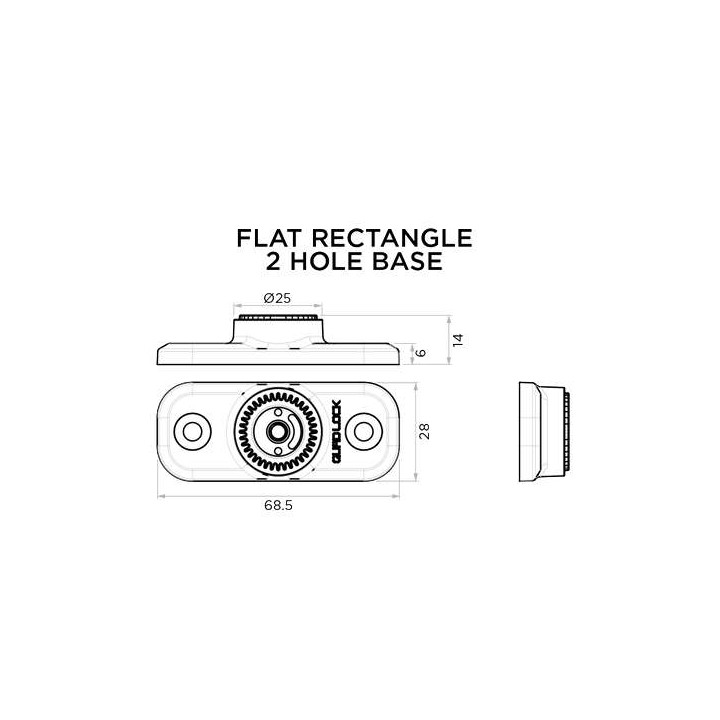

DIMENSIONS

- Length: 68.5 mm (2.7")
- Width: 28 mm (1.1")
- Height: 14 mm (0.55")
- AMPS hole pitch: 48.5 mm (1.9")

INCLUDED

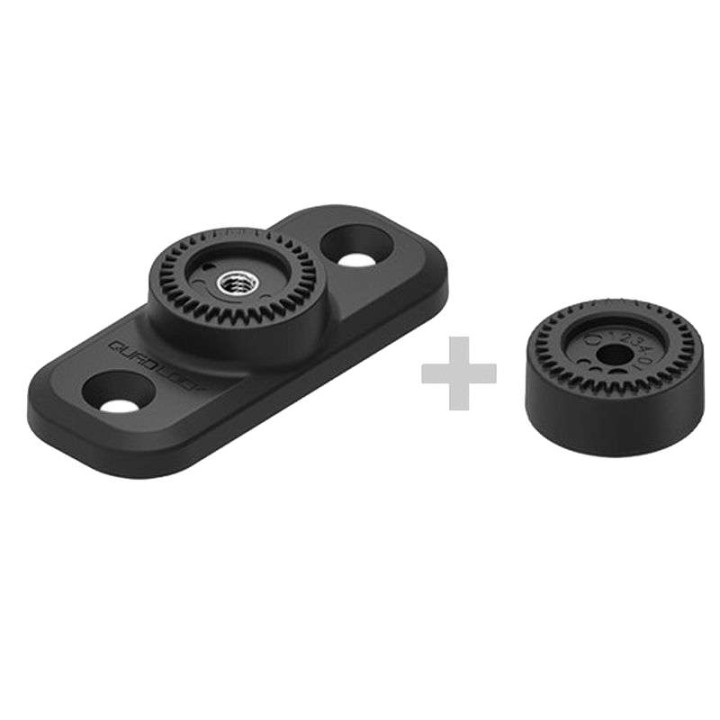

- 1 x 2-hole flat rectangular base
- 1 x 10 mm spacers
- 1 x M5x30 screw (to connect spacer to lever head or 360° arm)
- 1 x M5x45 screw (to connect the spacer to the weatherproof wireless charging head)

*NOTE: The base is sold separately, and must be used in conjunction with a Quad Lock 360 arm or head.
