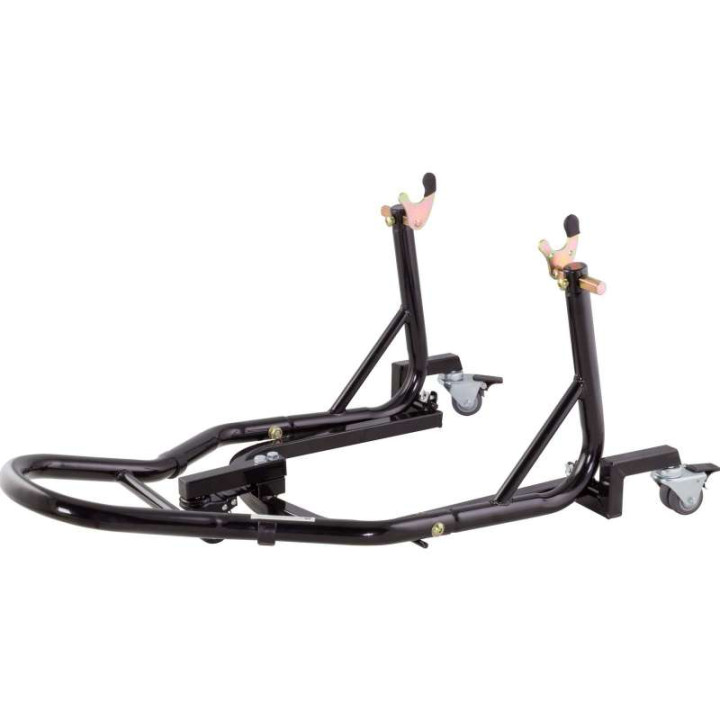

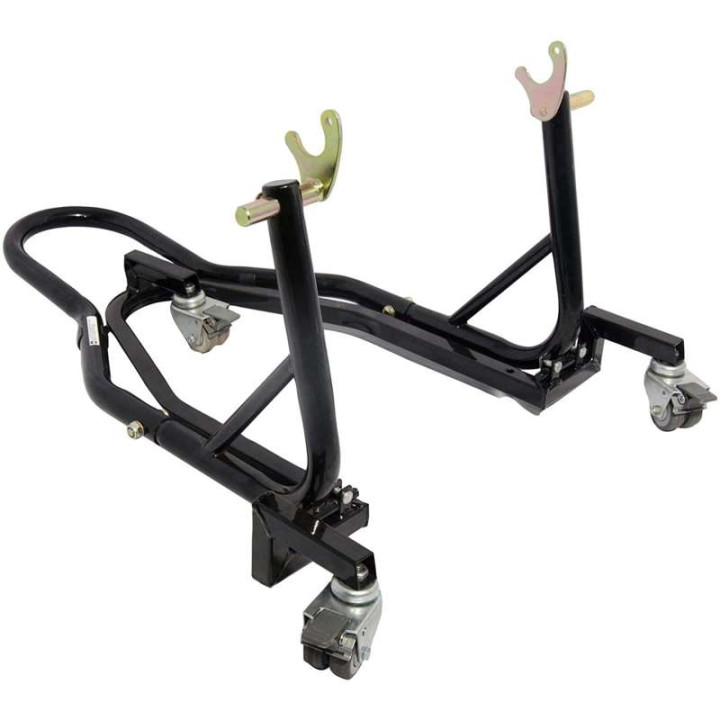

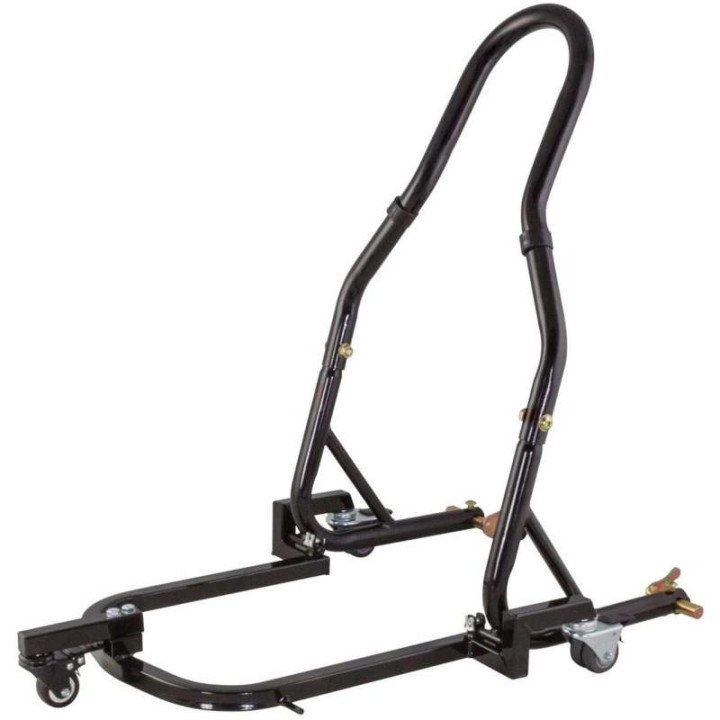

BikeTEK 360-DEGREE mobile rear stand

BIKETEK 360-DEGREE rear stand with V-shaped supports. Easily move a stand-mounted motorcycle in the tightest of spaces (paddock, workshop, garage, etc.).

This rear stand is designed to be used exclusively with V-brackets (for lifting pins or diabolos) for reasons of stability.

Supplied with adjustable V-brackets.

- Weight: 7.250 Kgs
- Dimensions (mm) : L 560 x W 885 x H 340 (height from ground to fork axis)
- Fork width min/max: 260/380 mm

Assembly:

> 1 Fix the rear castor to the main frame of the stand using the two stainless steel nuts + washers provided.
> 2 Position the side uprights in their respective positions and replace the retaining pins.
> 3 Fit the handle onto the side uprights and secure it with the 2 nuts + bolts and 4 washers provided.
> 4 position the V-brackets in their respective positions, with the "fork" facing the inside of the lever-handle and the flat side facing the retaining screw
