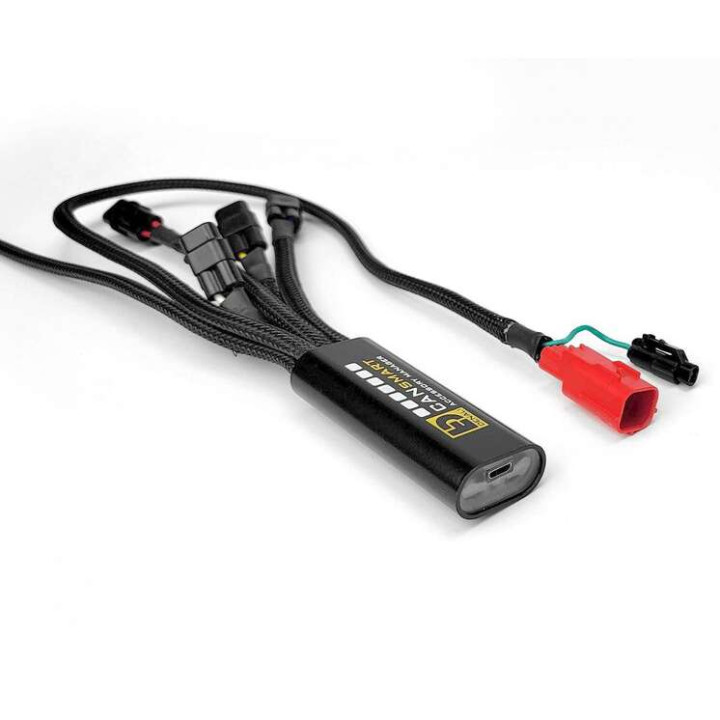

DENALI CANsmart harness KTM 890/1290 (DNL.WHS.21700)

DENALI part number: DNL.WHS.21700

Take advantage of the flexibility and intelligence of your motorcycle's CANbus electrical system to make accessory installation considerably easier with the DENALI CANsmart™ Controller. The CANsmart allows plug&play installation of up to four electrical accessories, all controlled by the existing handlebar switches on your machine. What's more, since CANsmart controls the power distribution functions, no additional relays are required.

CANsmart has several settings that will make the auxiliary lights flash when you operate your high beam switch or your horn. The feature-rich brake light circuit will transform a simple brake light into an intelligent brake light with a running light, multiple indicators and a deceleration-activated braking function. The horn circuit allows the addition of an auxiliary horn without the need for a relay or dedicated wiring harness.

- Plug & Play installation
- Provides customized control of your electrical accessories
- Immediate use
- Allows independent adjustment of high and low beam brightness
- 4 pre-programmed circuits to control:
Two sets of lights
One horn
One brake light
- Free software (for Mac or PC) lets you customize circuits, but the default settings will suit the vast majority of installations
- Allows addition of a DENALI SoundBomb horn without having to add a relay or dedicated wiring harness

NB For KTM 890
Due to the different wiring harness variants found on these machines, the following functions are not available:

- Control of light circuits 1 and 2 via the original commodos
- Blinker circuit
- Cut-out or strobe effect of additional lights when the blinkers are activated
- Auxiliary brake light on with front brake only
- KTM dongle

On 890 models, we recommend installing a DualDim rather than a CANsmart to control additional lights only.
