DENALI DialDim BMW R1250GS intelligent controller

DENALI reference: DNL.WHS.25600

Assembly instructions here

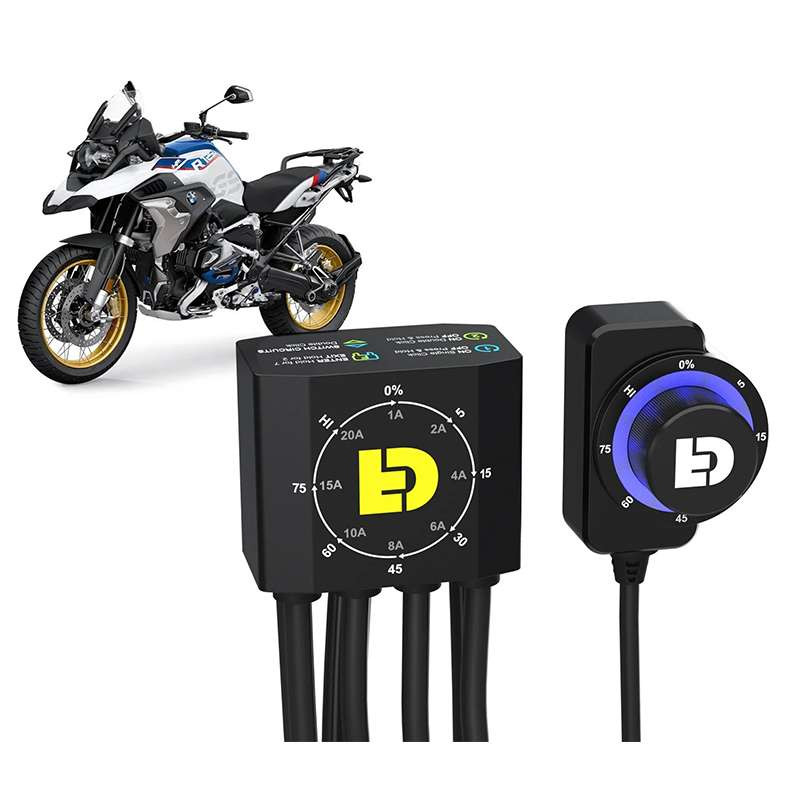

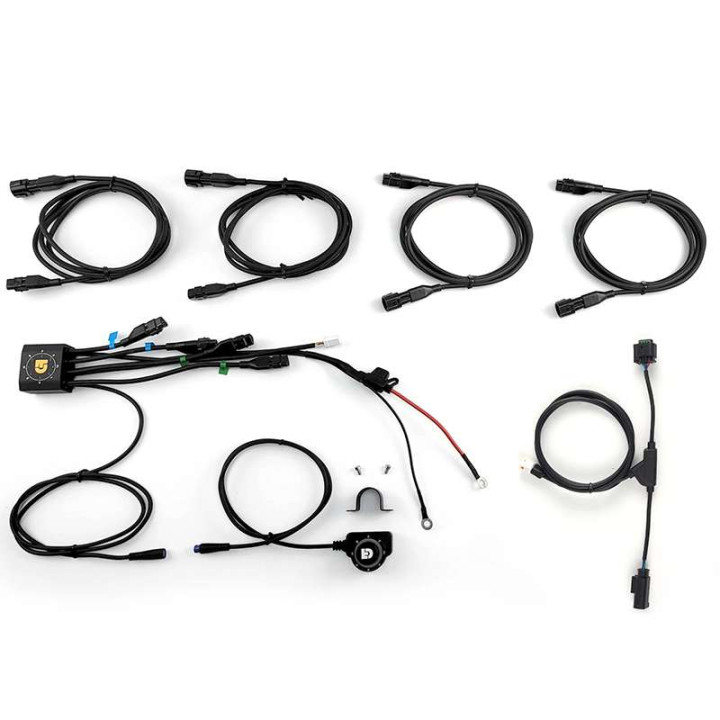

This DialDim lighting controller has the same amazing features and settings as the universal controller, but includes a plug-&-play wiring adapter to allow effortless installation on the BMW R1250 GS and other R1250 series motorcycles. Simply connect to your battery and a socket under your seat to unlock unique flash functionality and fully independent dimming control of two sets of DENALI high beams.

The controller also features high beam, turn signal and horn inputs to unlock smart flash functions that can cancel your auxiliary lights with your turn signal, flash your auxiliary lights as a turn signal, or flash your lights when you honk.

Features:

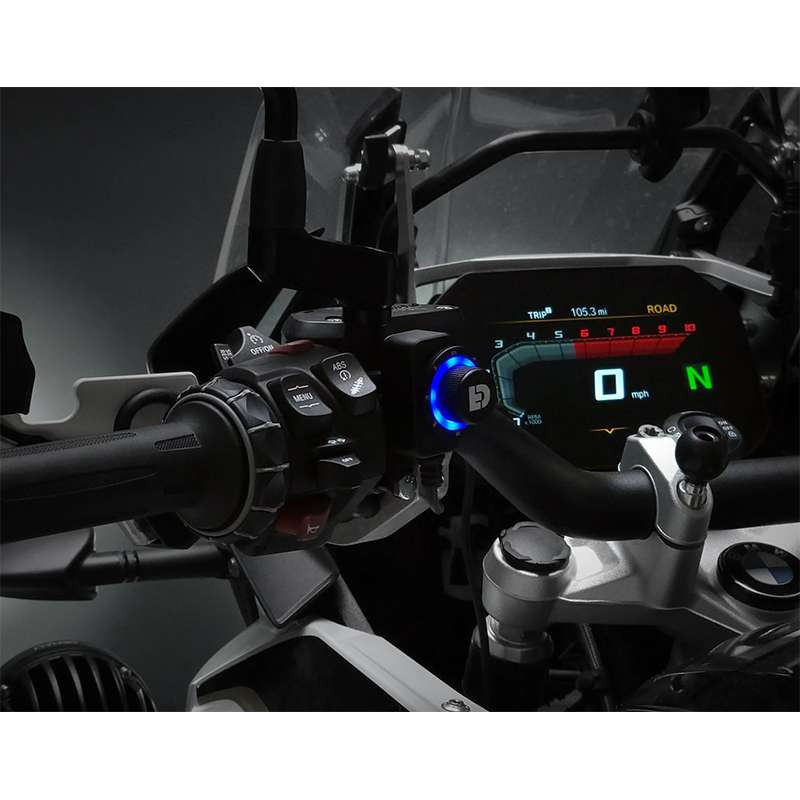

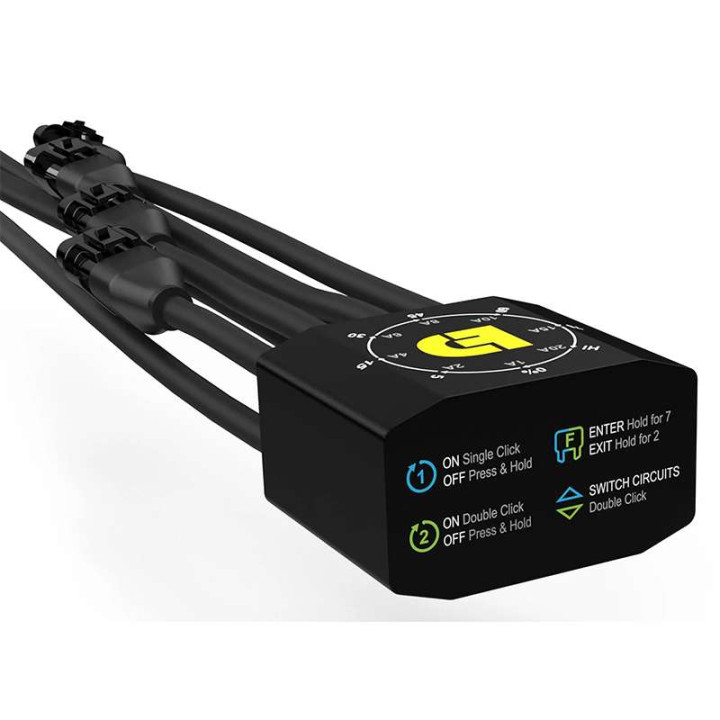

ON/OFF & Dim: Independently control two sets of on/off lights and the intensity level using the DialDim™ switch. The blue halo controls light set 1 and the green halo controls light set 2. Double-click to toggle between the two circuits

High/Low Sync: Your auxiliary lights will automatically switch from your current setting to full intensity with the original high beam switch. Simply connect the blue input wire to your vehicle's high beam circuit to activate this function.

Stealth mode: An intelligent 0% light intensity setting on the switch allows your lights to be "off" under normal driving conditions, but they will switch to 100% intensity with your vehicle's high beam switch. In this mode, the lights also respond to turn signals and the horn, but will remain off when no input is detected.

Turn signal cancellation : When activated, the main lights (blue circuit 1) turn off in synchronization with your original turn signal. Simply connect the yellow and orange input wires to your vehicle's flasher circuit to activate this function.

Flash as flasher : When this function is activated, your lights (green circuit 2) will flash in sync with your original turn signals. Simply connect the yellow and orange input wires to your vehicle's turn signal circuit to activate this function.

Strobe with horn: When this function is activated, the auxiliary lights on both circuits flash at 4 Hz when you activate your horn. Simply connect the green input wire to your vehicle's horn circuit to activate this function.

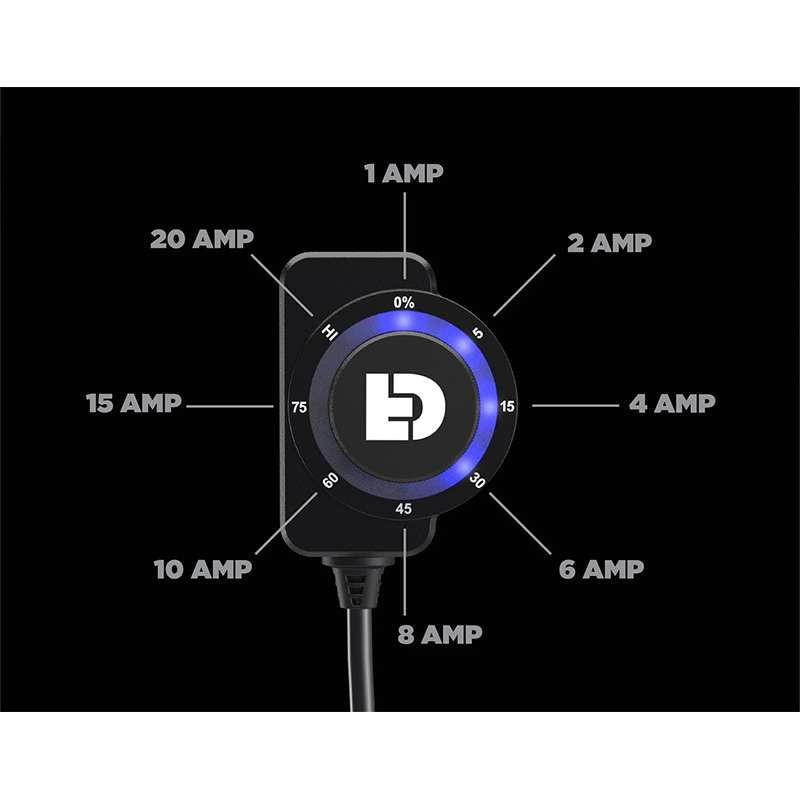

Electronically fused circuits: Both lighting circuits are electronically fused and can be adjusted directly from the switch itself! The halo lights up red to warn you when a circuit fuse has tripped.

Voltage indicator: When the vehicle is started, the halo on the switch flashes green to indicate a healthy battery voltage, or red to indicate a battery voltage below 11.8 volts.

Low-voltage cut-off: If battery voltage falls below 10.8 volts, the lights won't come on, so you won't be stranded. Switch halo flashes 4 red LEDs to indicate low-voltage condition
