DENALI DL6 additional light (unit)

Installation instructions here

The new DENALI DL range of additional lights offers exceptional value for money.

Thanks to a new TIR optic, DL lights offer a hybrid beam (mixing diffusion and concentration lenses): the ideal compromise between width and depth of illumination.

The new housings in this "DURA" range are, of course, IP68 waterproof and highly resistant, as demonstrated by the new 4mm-thick steel brackets and the UV-reinforced polycarbonate lens. These lights will stand up to the worst conditions without difficulty.

Sold individually, without harness or accessories, to replace a damaged light or to reinforce your existing equipment. The beacon is pre-wired for Plug&Play installation on DENALI beams (Premium, DialDim or CANsmart), and also includes a 3-wire "pigtails" connector for connection to a standard electrical circuit without cutting the beacon terminal.

NB: Motorcycle-specific bracket and wiring solution sold separately.

LEDs: 6 x Cree XPL HI LEDs, 8W each
Power consumption: 4A each / 8A per pair
Total luminous flux: 5,100 lumens each / 10,200 lumens per pair
Light beam distance: 305 m / 406 m per pair
Light beam width: 52 m / 82 m per pair
DataDim™ compatible: Yes
Operating voltage: 9 - 32 Volts DC
Housing: IP68 waterproof, submersible and resistant to high-pressure jets

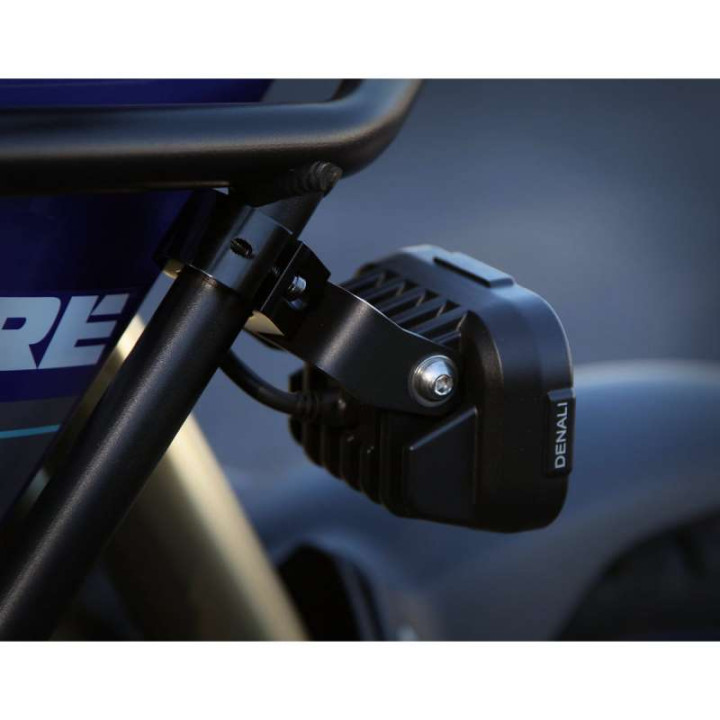

Mounting: Stainless steel bracket with hole for M8 screw
Optics dimensions: 114 x 76 mm

Please note that DL series pods are not compatible with the DENALI mudguard bracket LAH.00.10700.B.
