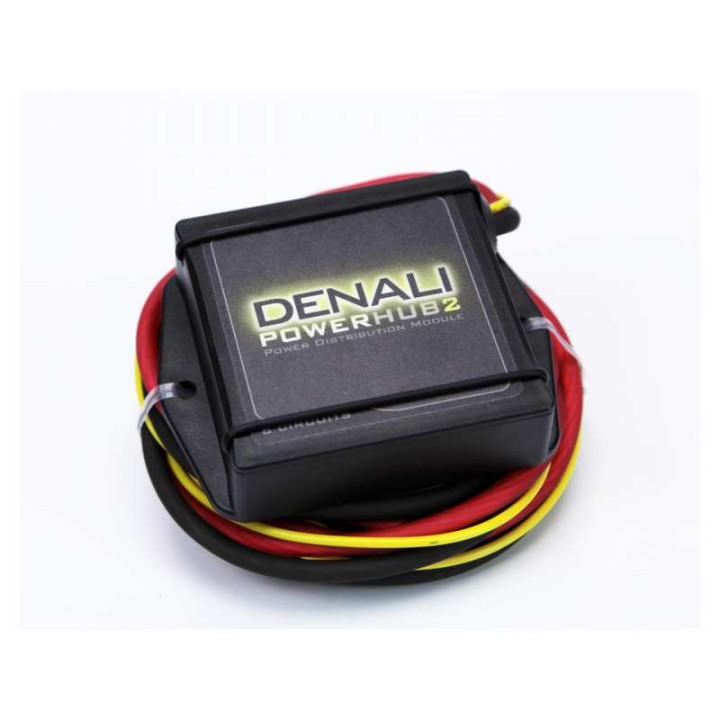

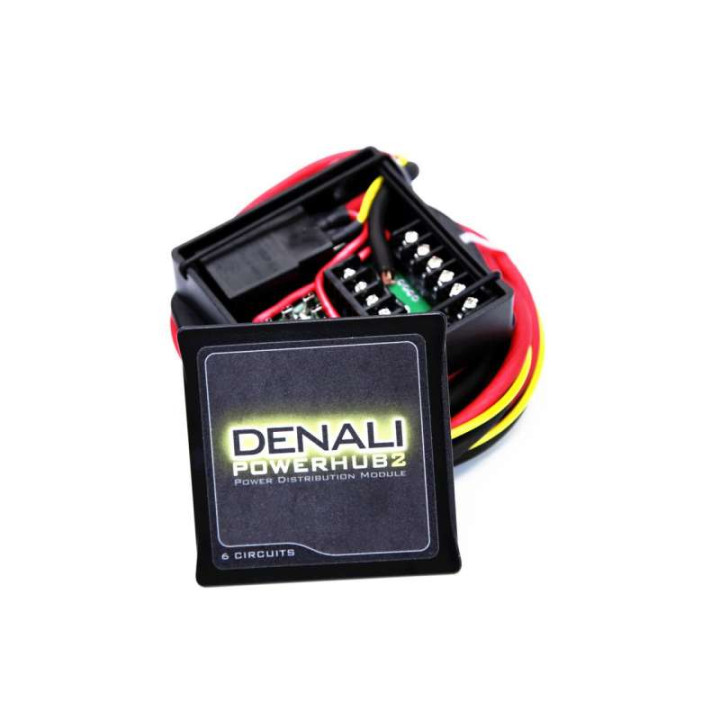

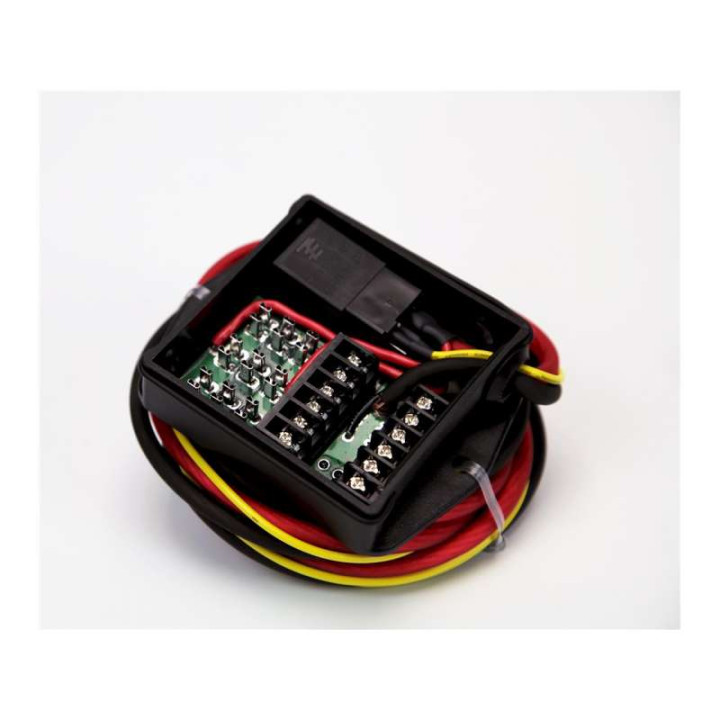

DENALI PowerHub2 power supply module

DENALI Reference: ELC.00.30000

Mounting instructions here

The DENALI PowerHub2 Power Distribution Modulei, allows you to safely connect up to 6 electronic devices to your motorcycle. The module is CANbus-compatible and includes six fused 15-amp outputs, six ground terminals and a plug-and-play wiring harness for direct connection to the battery. Each of the six outputs can be activated or deactivated individually when the motorcycle is switched on. Instead of attaching multiple terminals to your battery, use one PowerHub2!

Denali has designed the CANbus-safe PowerHub2 to enable simple and easy installation of electrical components. Each unit has six individually protected outputs. Simply plug the fuse into the left or right side of the circuit board to operate the accessories permanently, or connect them to the motorcycle's ignition. The entire unit is rated for 30 amps (360 watts). Each of the six circuits can handle up to 15A (180W) each - without exceeding a total sum of 30 Amps simultaneously.

Features:

- Waterproof, compact and sturdy
- 30-amp Tyco/Bosch micro-relay (replaceable)
- Choice of switched or constant power
- 6 circuits for up to 15A (180W) each
- CANbus compatible
- Dimensions: 76x101x25mm

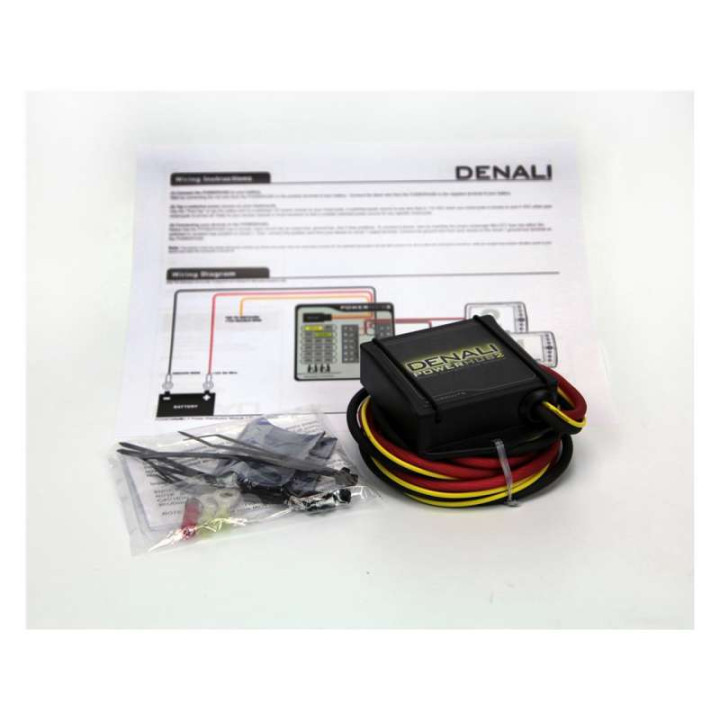

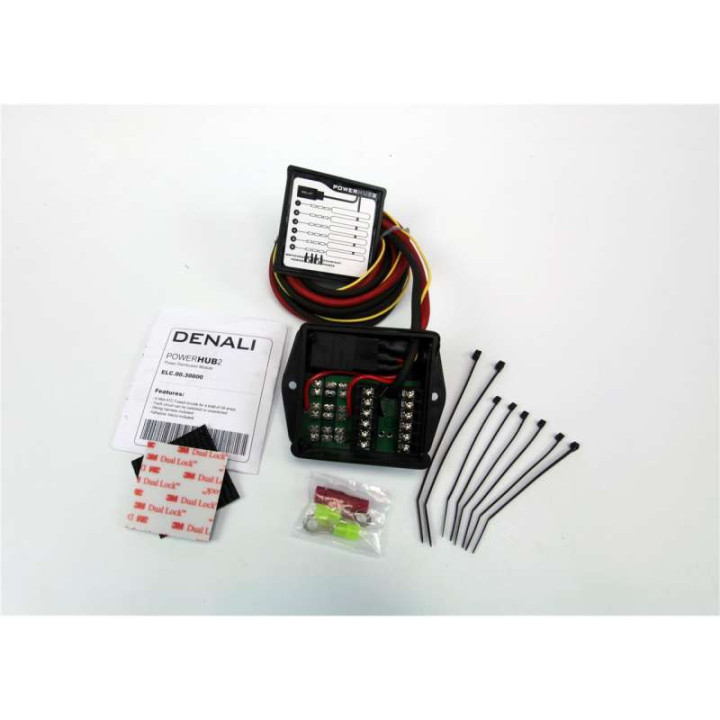

Kit includes :

- 1.5m long cable harness, to connect the PowerHub2 to the battery (switched trigger cable with Posi-tap connector included)
- Adhesive tape for quick attachment of the PowerHub2 to a flat surface
- 2 ring terminals, circlip fasteners
