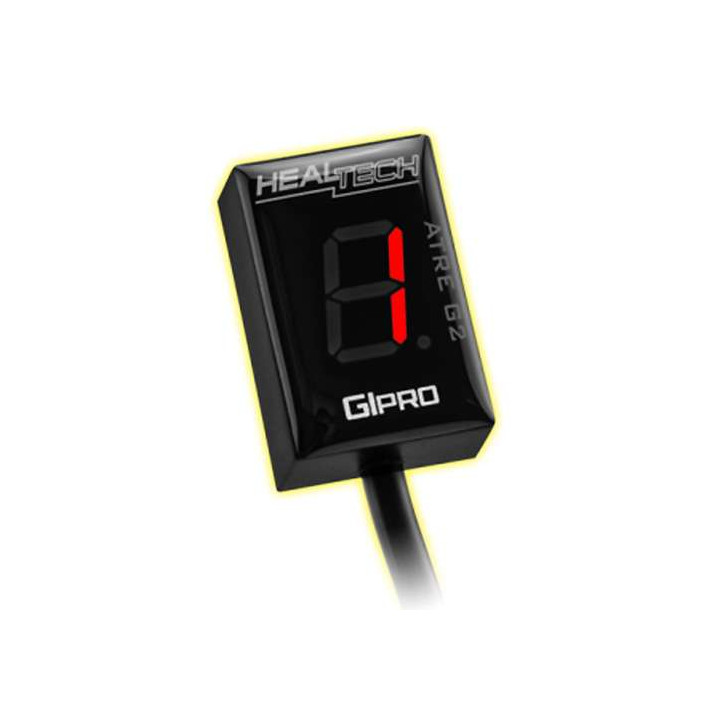

Healtech gear indicator GIpro ATRE G2 Triumph GPAT-T03

The Healtech GIpro ATRE G2 gearshift indicator is one of the best gearshift indicators currently available: in addition todisplaying the gear engaged quickly and clearly, it features a function that eliminates ignition delay in the first gears (manufacturer's clamping device for anti-noise and anti-pollution standards), as well as the speed limit on certain machines.

Fitted with a plug specific to your machine, installation is extremely simple (only the 12-volt supply wire needs to be connected).

- GIpro ATRE G2 gear indicator for Triumph, model GPAT-T03
- Connections specific to your motorcycle
- TRE (Timing Retard Eliminator) function
- High-brightness LED touchscreen display, automatically dimmed according to ambient brightness

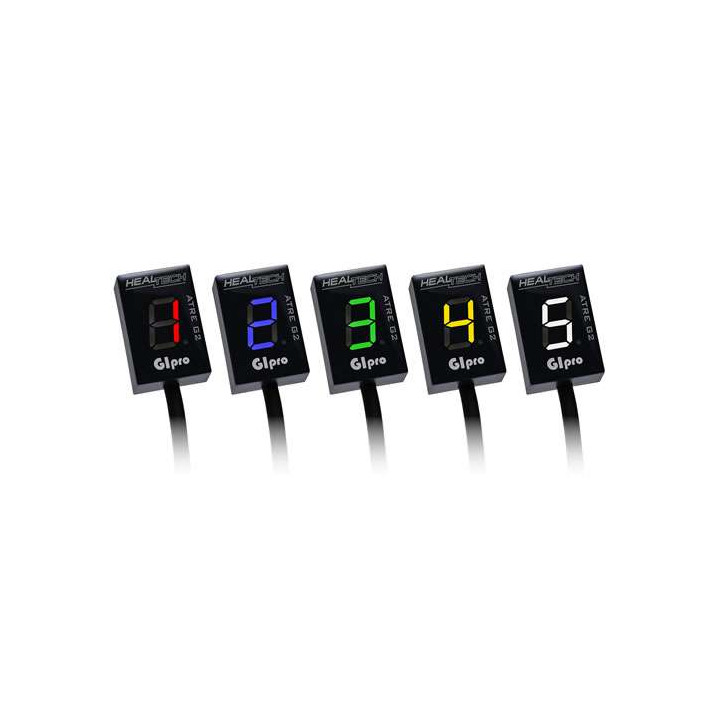

- Choice of display colors: Red (recommended for optimum readability), Blue, Green, Yellow, White
- IP68 waterproof case
- Dimensions: 20 x 30 x 13 mm
- Weight: 61 g (including wiring)

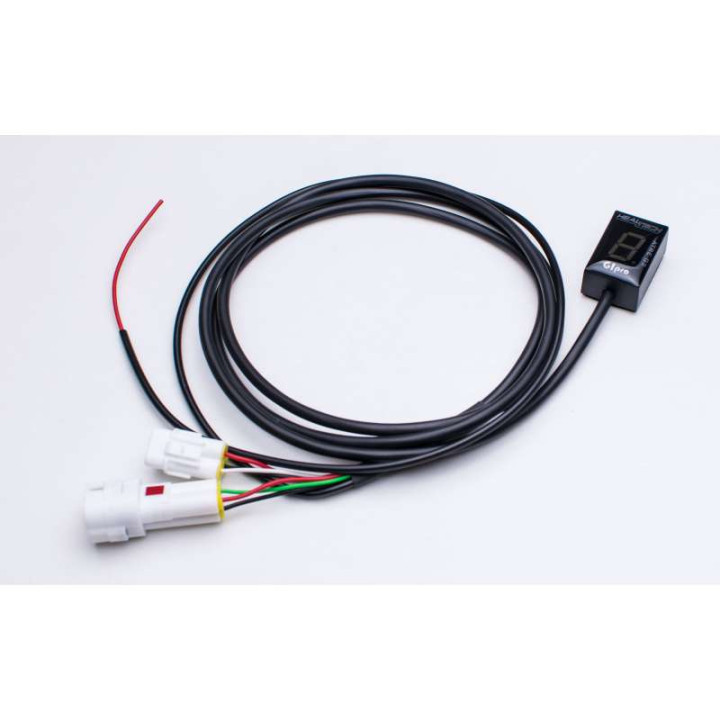

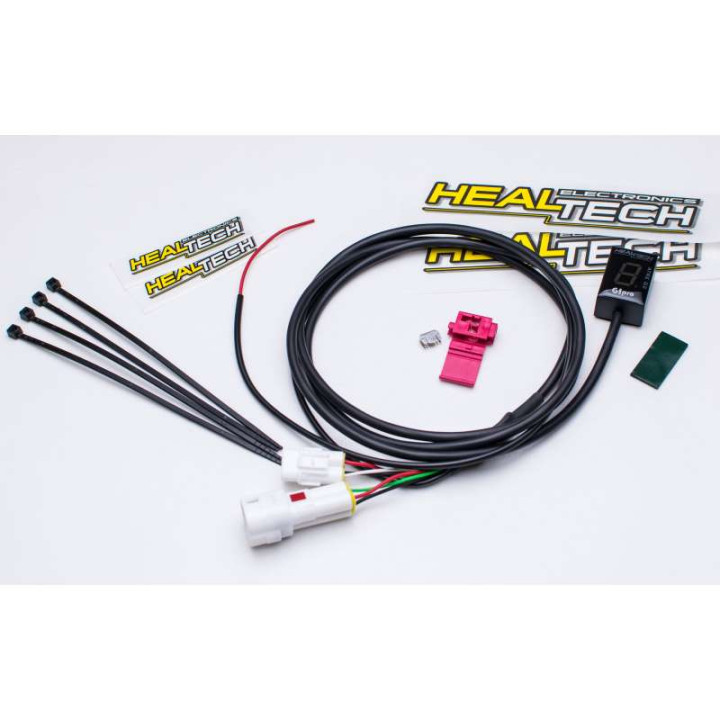

- Quick installation: specific connector + 1 wire for 12-volt power supply (fast bypass connector included)
- Attached with double-sided adhesive tape
- Optional handlebar mounting kit available (GIPRO-M)

- Square pin with 4 lugs
Assembly instructions here
User's guide here
