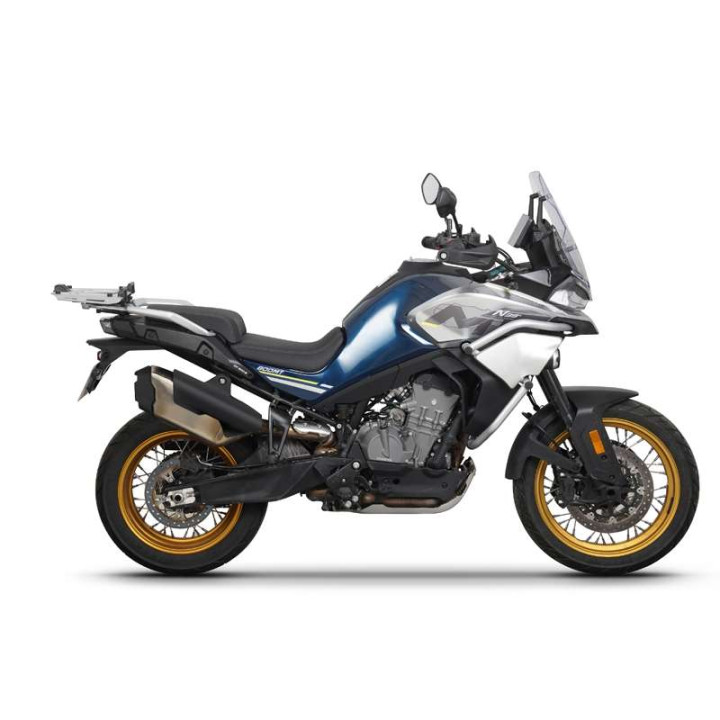

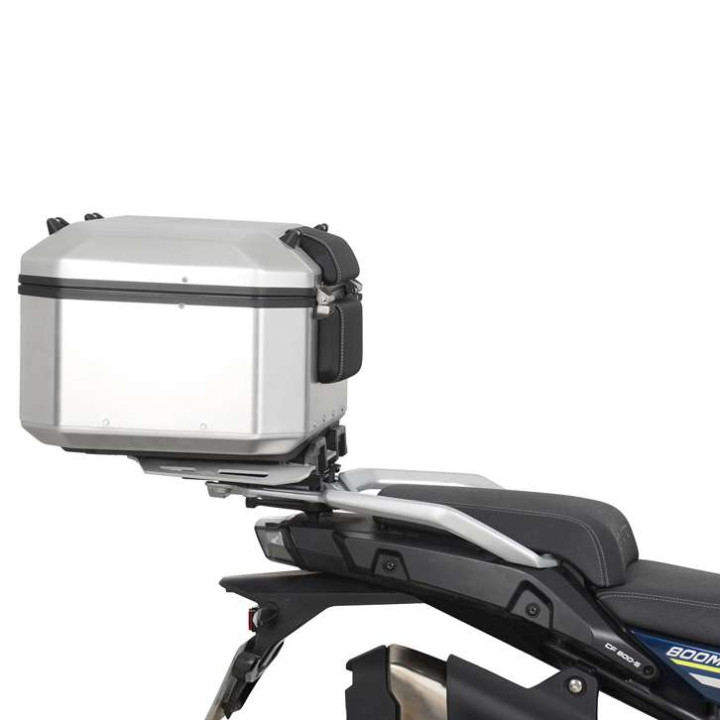

Kit top case alu Shad TERRA TR48 + support (C0MT81ST) MT 800 Touring

Complete kit adapted to your machine, including a Shad TERRA TR48 top case, the D1B591PA nylon plate and the C0MT81ST Top Master support.

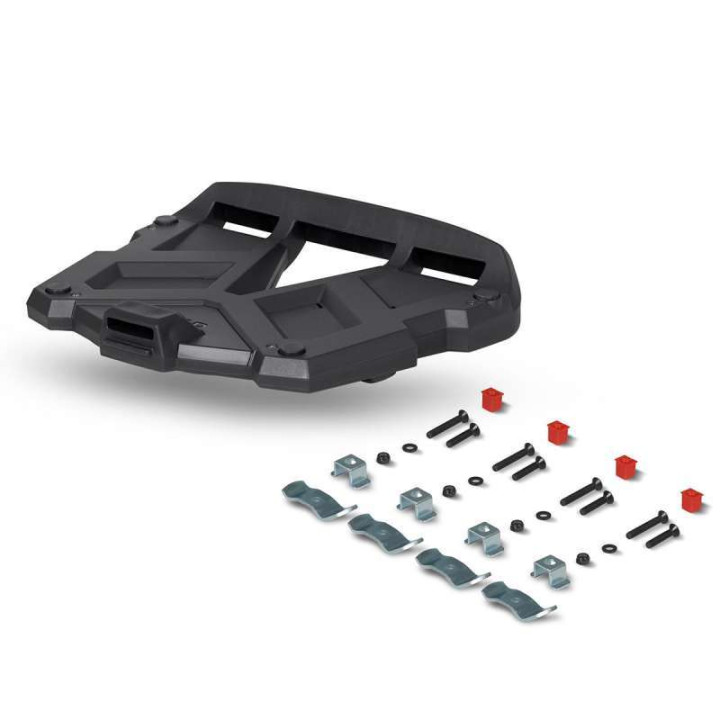

Standard "large model" plate for Shad SH48, SH50, SH58X/SH59X top cases (included as standard from 2021) and TERRA TR37 and TR48 (optional, plate not supplied with these top cases)

- Shad part number D1B591PA (plate + screws)

Please note that for the very first generation of SH48s, the appropriate plate is that of the current SH39, SH40, SH42, SH45 and SH46.

The all-new TERRA range of SHAD aluminum cases and top cases stands out thanks to an ideal balance between engineering and design.

TERRA luggage is designed to be your best ally on any adventure. During design and development, these products were subjected to over 1,000 hours of laboratory testing and more than 10,000 km of road tests to meet the expectations of future users.

MOUNTING: TERRA top cases use a special aluminum mounting plate (D1BTRPA), sold separately. Can also be mounted on standard nylon plate ref. D1B481PA.

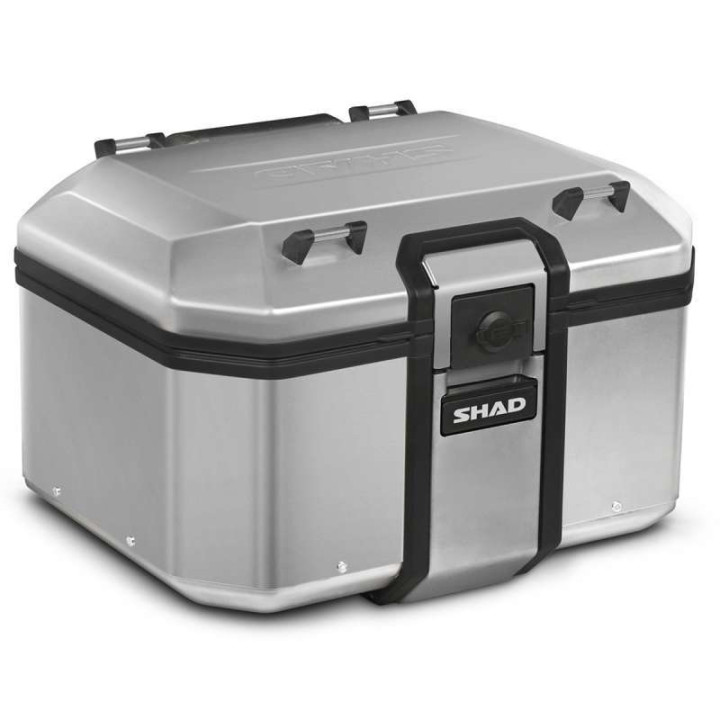

TERRA TR48 ALUMINUM MOTORCYCLE TOP CASE

- Motorcycle top case with forged aluminum alloy structure (1.2 mm wall thickness), stronger and lighter than standard aluminum
- 48-liter capacity
- Dimensions (cm): W 49.5 x D 41.8 x H 32.2

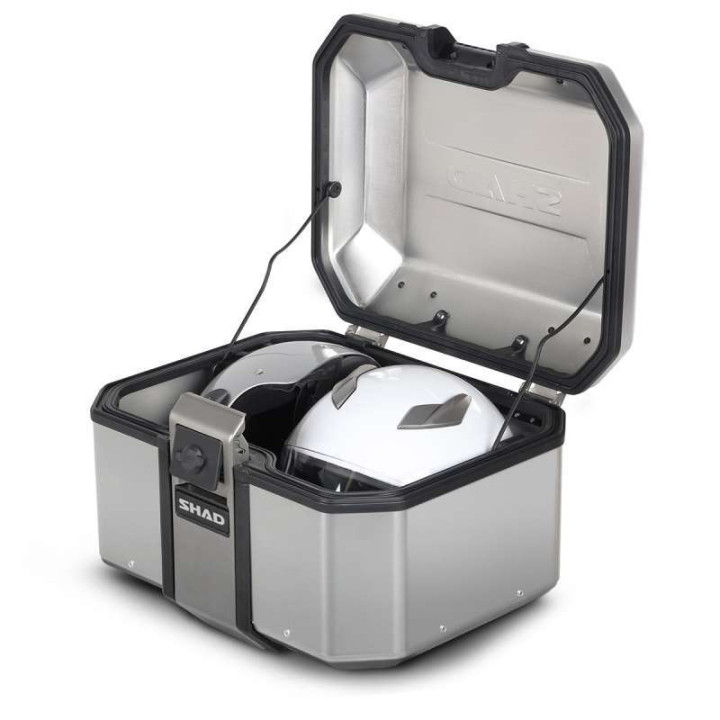

- Carrying capacity: 1 dual-sport helmet or 1 full-face helmet + 1 jet
- Max. weight 10 Kgs
- Designed, developed and manufactured in Barcelona
- Quick opening, closing, locking, assembly and disassembly with just one hand
- Double stainless steel locking system for added security (secures top case to base plate and protects your belongings)
- AISI 304 stainless steel hinges
- Integrated carrying handle
- Impact, vibration and tear tested
- UV-resistant (ASTM G-154), oxidation-resistant (ISO 9227) and weather-resistant (ISO 4892-2)

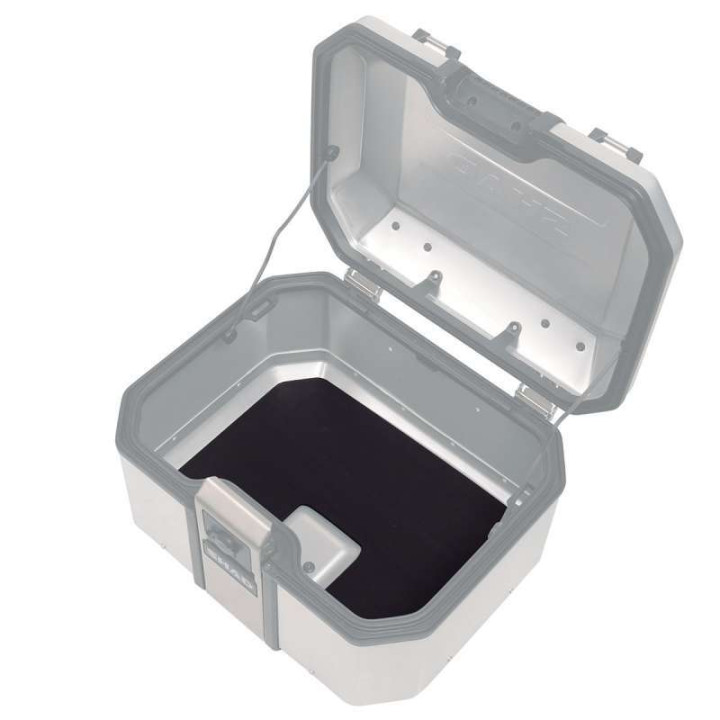

Optional accessories: passenger backrest (D0RI75) and internal bag (X0IB47)

Assembly instructions here

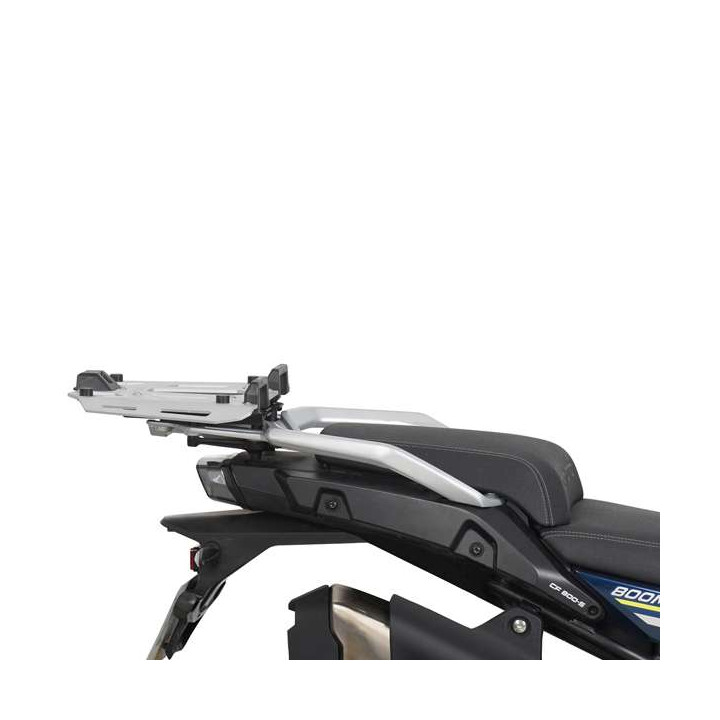

Bracket for attaching a Shad top case to your two-wheeler. It accepts all SHAD top cases, from SH26 to SH59X (use the nylon plate supplied with the top case) and SHAD TERRA (aluminum plate sold separately).
