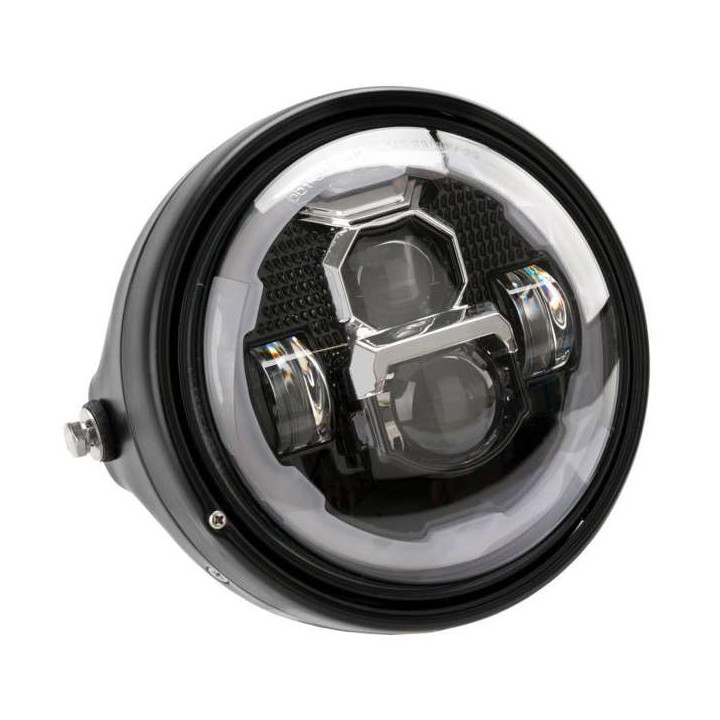

Puig LUMEN Z LED headlight

Installation instructions here
Looking for LED headlights with a neo-retro look? Puig's new LUMEN headlights will give your bike a vintage look without sacrificing the best lighting technology. The design of this optical cluster adapts perfectly to all types of models, especially those with café racer details or preparations with roadster units as a base.

The headlight is sold without a mounting kit; Puig offers universal clamp mountings in diameters 35-37cm, 38-41cm and 42-43 (sold on our site).

Approved universal led headlight :

Dimensions :
- Headlight width: 176 mm
- Headlamp height: 99 mm
- Headlight depth: 139.2 mm

Position light
- Power: 3.5W
- Lumen: 350

Short-range light :
- Power: 23W
- Lumen : 1055

Long range lighting :
- Power: 36W
- Lumen : 1570

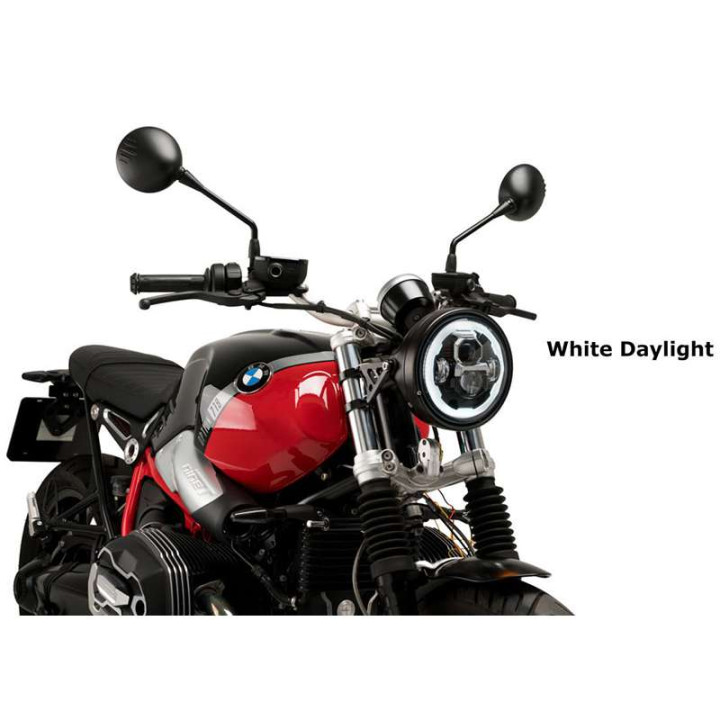

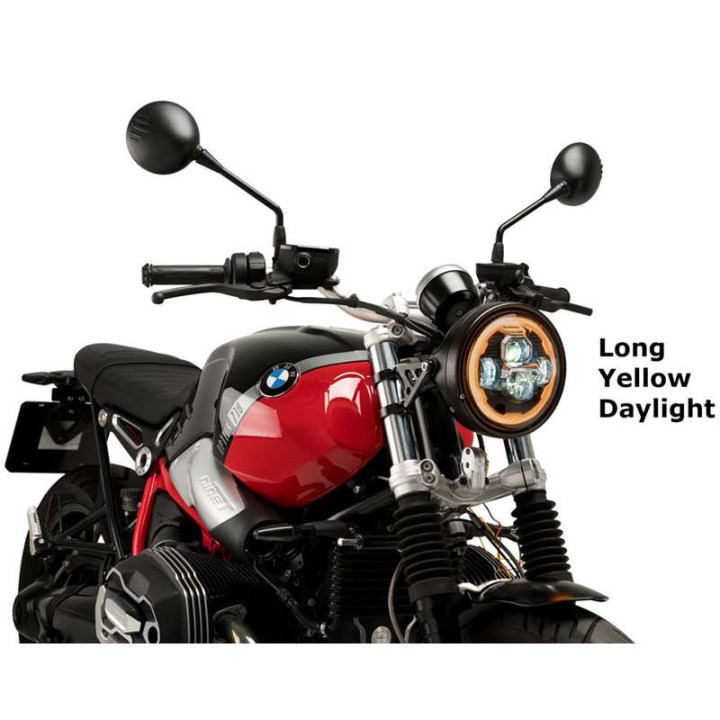

The purchaser of these universal LED headlights must take into account the technology of his own motorcycle when fitting them. If your motorcycle includes LED position lights as standard, you can activate the high and low beams as you would before the modification. In other words, when activating the position, it would have an LED light and when changing (short or long), the LED system would switch off. If your motorcycle has only short- and long-range lights, they will be activated in the same way, but with LED groups.
