PZRacing GT3100-D2 gear indicator for Ducati

GT3100-D2
€122.40
Ships from 25 September 2026 Delivery possible from 26 September 2026 with Chrono 24 shipping

PZRacing GT3100-D2 gear indicator for Ducati
GT3100-D2
€122.40
Ships from 25 September 2026 Delivery possible from 26 September 2026 with Chrono 24 shipping

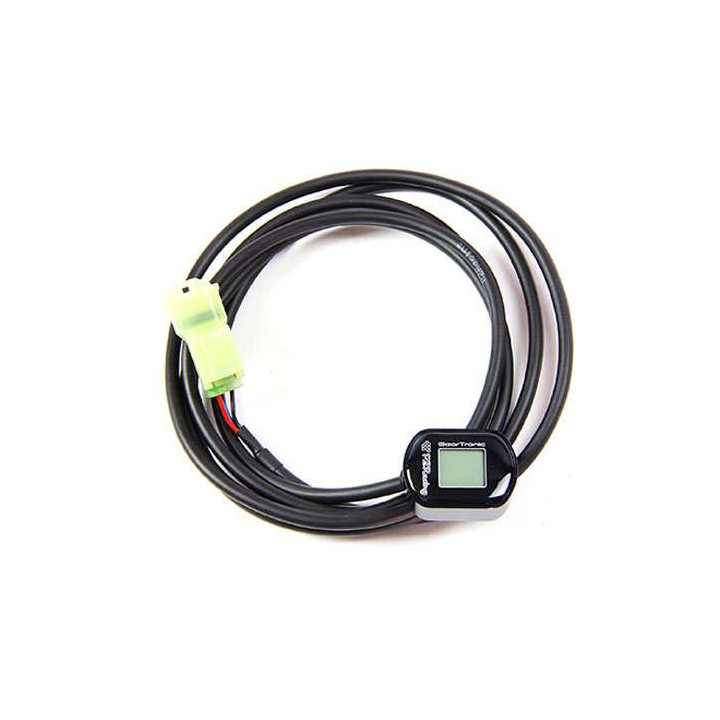

An evolution of the famous GT310, the new GT3100 gear indicator is just as easy to install as ever, thanks to a special plug that mates with your bike's original connectors.

The new black-anodized aluminum case is more compact, less angular and easier to install on your bike's handlebars thanks to the two threaded holes at the rear.

TheLCD screen is now touch-sensitive, with a ± 60° viewing angle for optimum readability in all lighting conditions.

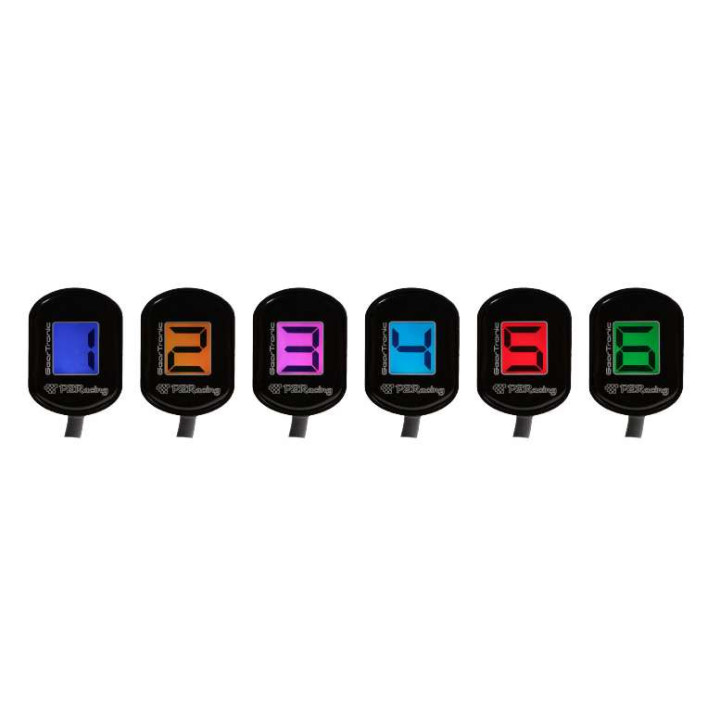

This model offers a choice of 6 different backlight colors.

- 100% Plug & Play
- LCD display with ± 60° viewing angle
- Integrated touch screen
- 6-color backlighting
- Black anodized aluminum housing
- Dimensions: 36 x 27 x 15 mm
- Waterproof housing, black anodized aluminum

Installation:

1- To enter calibration mode, after switching on the ignition and engaging neutral, touch the tactile zone 3 times.
2- The different background colors scroll one after the other; touch the touch-sensitive zone to validate the desired color.
3- Indicator displays gear "1", engage first gear, climb to 5000 rpm and maintain this speed
4- After 5 seconds, indicator displays "2", engage second gear while maintaining engine speed
5- Repeat these operations up to the last gear
6- The indicator automatically exits calibration mode at the end of the process, displaying successive circles at the top and bottom.

NB: the indicator exits calibration mode on its own if engine speed drops during the process. Make sure to maintain a constant engine speed during the operation.
PRODUCT HIGHLIGHTS
  • Machine-specific
  • Plug&Play
  • LCD touch screen
  • 6 colors to choose from
New
2001353440008
Moto Ducati
Model
1200 DIAVEL
Displacement
1200
Year
2018
Model
1200 DIAVEL
Displacement
1200
Year
2017
Model
1200 DIAVEL
Displacement
1200
Year
2016
Model
1200 DIAVEL
Displacement
1200
Year
2015
Model
1200 DIAVEL
Displacement
1200
Year
2014
Model
1200 DIAVEL
Displacement
1200
Year
2013
Model
1200 DIAVEL
Displacement
1200
Year
2012
Model
1200 DIAVEL
Displacement
1200
Year
2011
Model
848 EVO
Displacement
848
Year
2013
Model
848 EVO
Displacement
848
Year
2012
Model
848 EVO
Displacement
848
Year
2011
Model
848 EVO
Displacement
848
Year
2010
Model
848 EVO
Displacement
848
Year
2009
Model
848 EVO
Displacement
848
Year
2008
Model
1100 HYPERMOTARD
Displacement
1100
Year
2010
Model
1100 HYPERMOTARD
Displacement
1100
Year
2009
Model
1100 HYPERMOTARD
Displacement
1100
Year
2008
Model
1100 HYPERMOTARD
Displacement
1100
Year
2007
Model
1098 R
Displacement
1098
Year
2009
Model
1098 R
Displacement
1098
Year
2008
