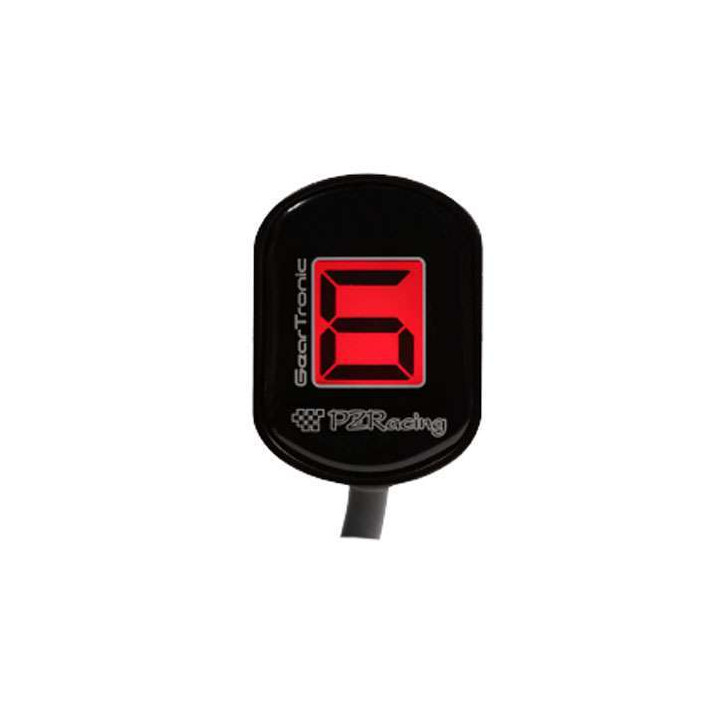

PZRacing GT3100-K3 gear indicator for Kawasaki

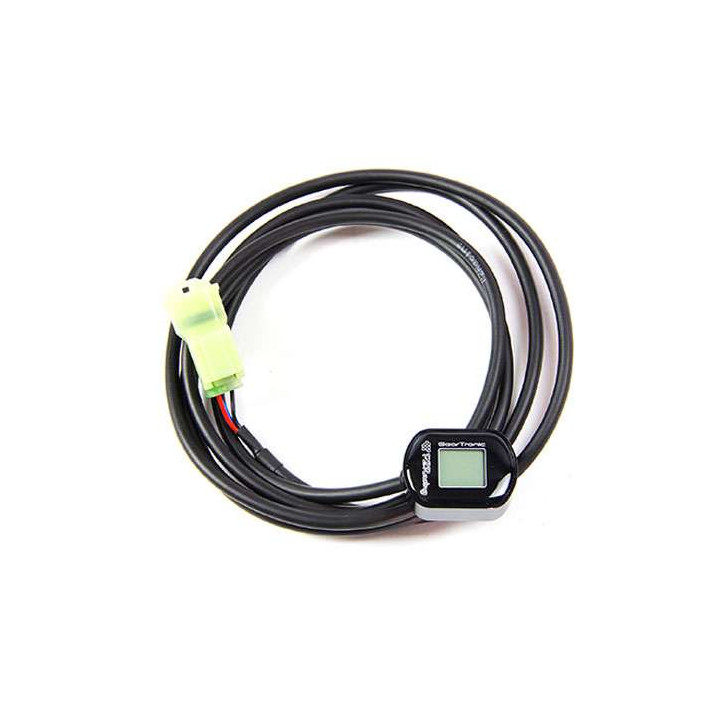

An evolution of the famous GT310, the new GT3100 gear indicator is just as easy to install as ever, thanks to a special plug that mates with your bike's original connectors.

The new black-anodized aluminum case is more compact, less angular and easier to install on your bike's handlebars thanks to the two threaded holes at the rear.

TheLCD screen is now touch-sensitive, with a ± 60° viewing angle for optimum readability in all lighting conditions.

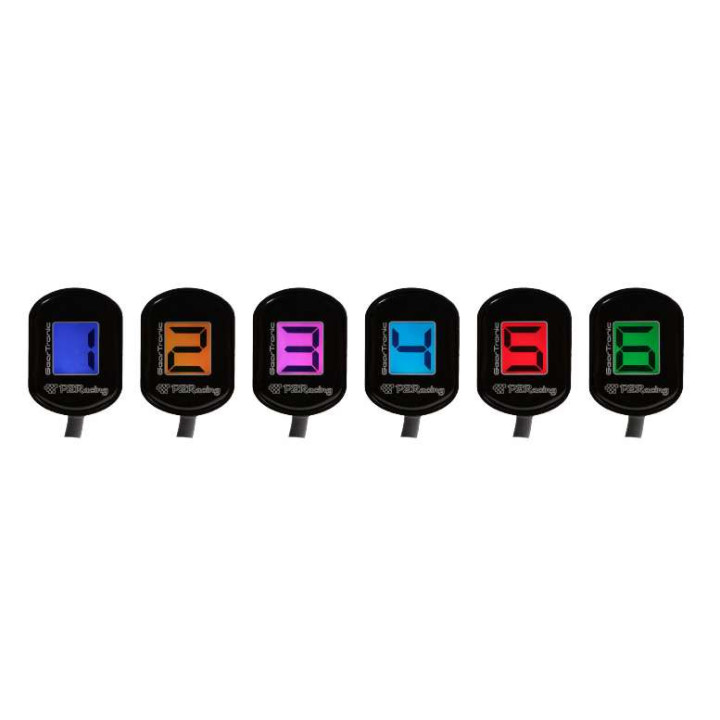

This model offers a choice of 6 different backlight colors.

- 100% Plug & Play
- LCD display with ± 60° viewing angle
- Integrated touch screen
- 6-color backlighting
- Black anodized aluminum housing
- Dimensions: 36 x 27 x 15 mm
- Waterproof housing, black anodized aluminum

Installation:

1- To enter calibration mode, after switching on the ignition and engaging neutral, touch the tactile zone 3 times.
2- The different background colors scroll one after the other; touch the touch-sensitive zone to validate the desired color.
3- Indicator displays gear "1", engage first gear, climb to 5000 rpm and maintain this speed
4- After 5 seconds, indicator displays "2", engage second gear while maintaining engine speed
5- Repeat these operations up to the last gear
6- The indicator automatically exits calibration mode at the end of the process, displaying successive circles at the top and bottom.

NB: the indicator exits calibration mode on its own if engine speed drops during the process. Make sure to maintain a constant engine speed during the operation.
