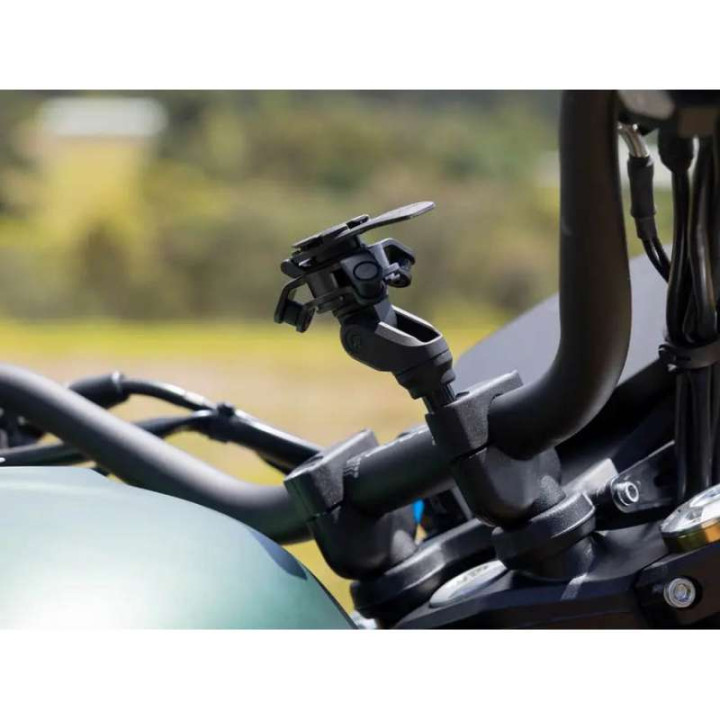

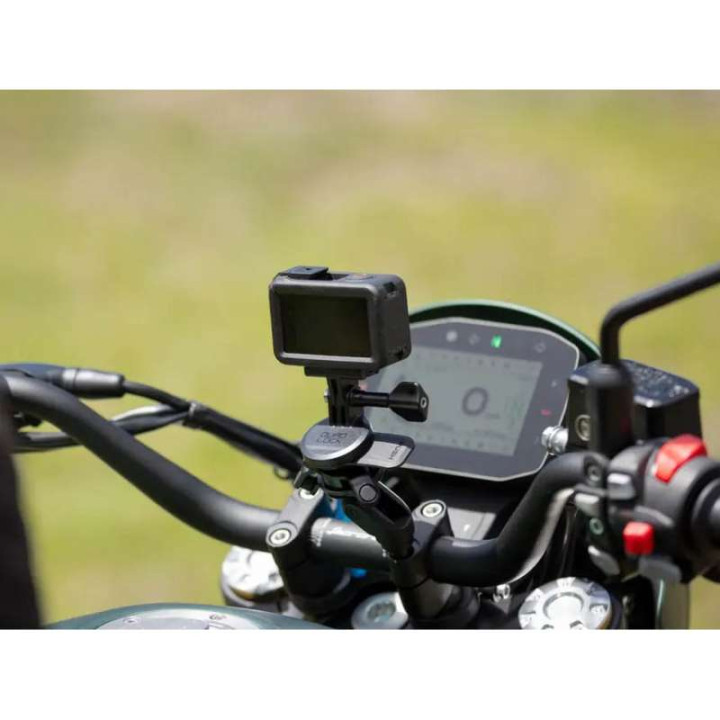

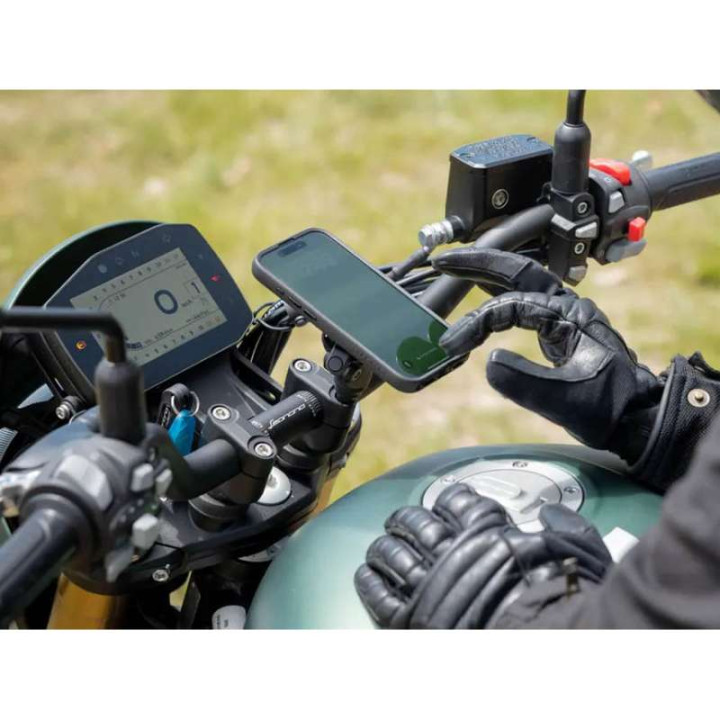

Quad Lock PRO trigger guard screw attachment

The Quad Lock PRO threaded rod bracket replaces the M8 threaded rod on your motorcycle's bridges for a perfectly integrated solution.

ADJUSTABLE VIEWING ANGLES

This bracket features a hinge with 135-degree swivel ranges, which can be adjusted using the included hex key. Install the bracket with spacer sleeves to clear the threaded rod and surrounding components.

SAFE ASSEMBLY

Anti-rotation serrations on the threaded rod base and spacer sleeves hold the bracket securely in place.

ELEGANT DESIGN

Don't compromise on the aesthetics of your motorcycle. The elegant design of all Quad Lock® brackets blends in perfectly with your bike's handlebars.

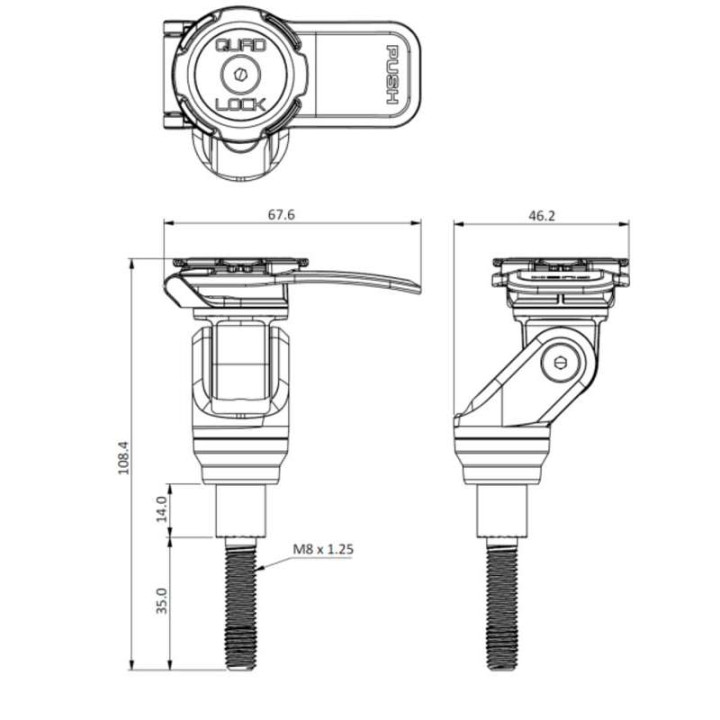

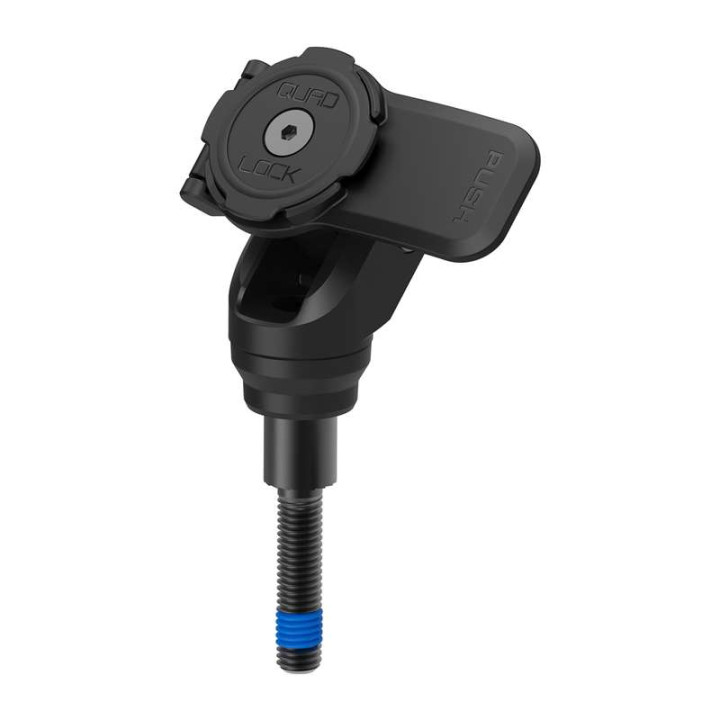

PRO THREADED ROD MOUNT

- Made of black anodized CNC-machined aluminum
- Black stainless steel screws
- Anti-rotation serrated threaded rod and spacer sleeves
- High-strength steel threaded rod
- Replaces existing M8 handlebar threaded rod
- 135-degree joint angle adjustment without disassembly
- Assembled with black lever

Includes:

1 x Quad Lock® indexing head (with black lever)
1 x Quad Lock 360™ M8 threaded rod
1 x 5 mm serrated spacer sleeve
1 x 10 mm serrated spacer sleeve
1 x PRO offset articulated adapter
1 x Allen key
