SW-Motech QUICK-LOCK GPS bracket for 10/12mm bar

SW-Motech QUICK-LOCK GPS mounts attach to the handlebars of your motorcycle, allowing you to quickly attach and detach your GPS (or other multimedia equipment).

Thanks to a vibration-damping system built into the mount, your device suffers less from vibrations rising up the handlebars, improving screen legibility.

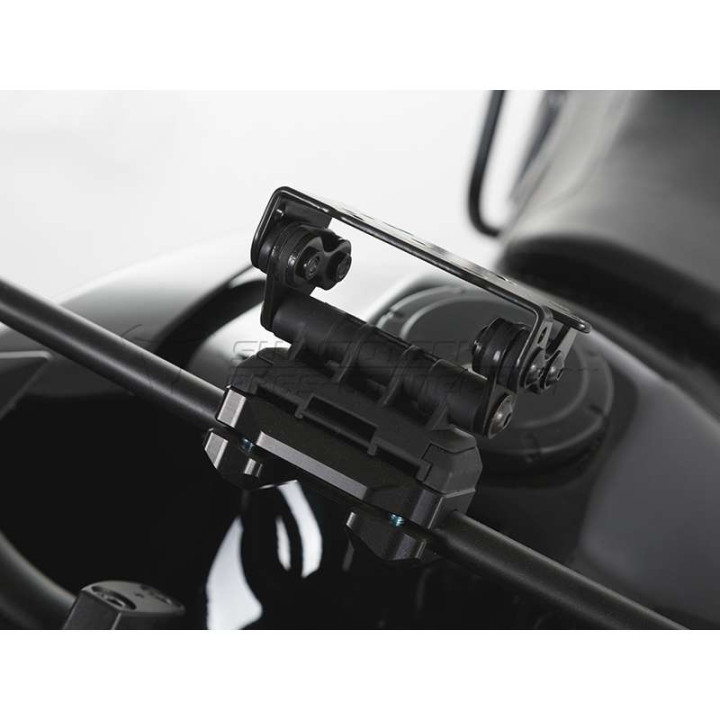

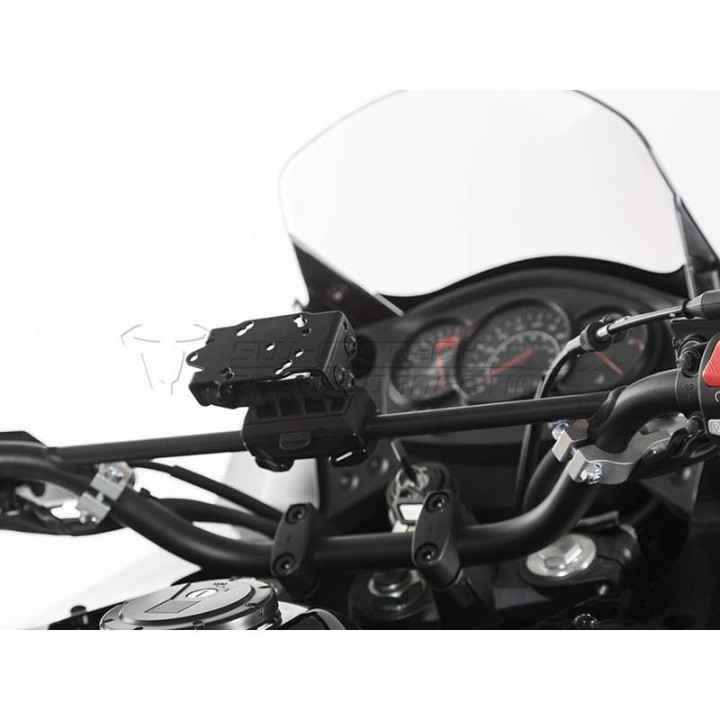

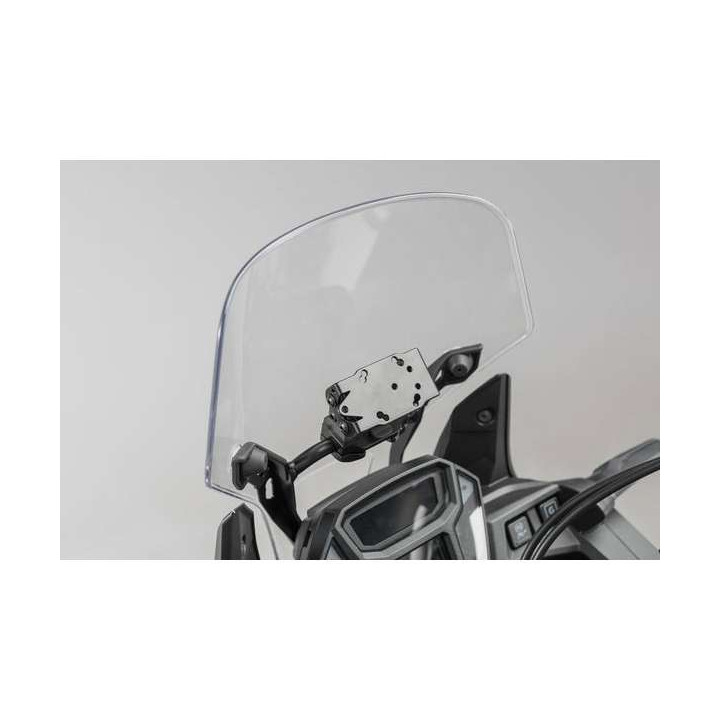

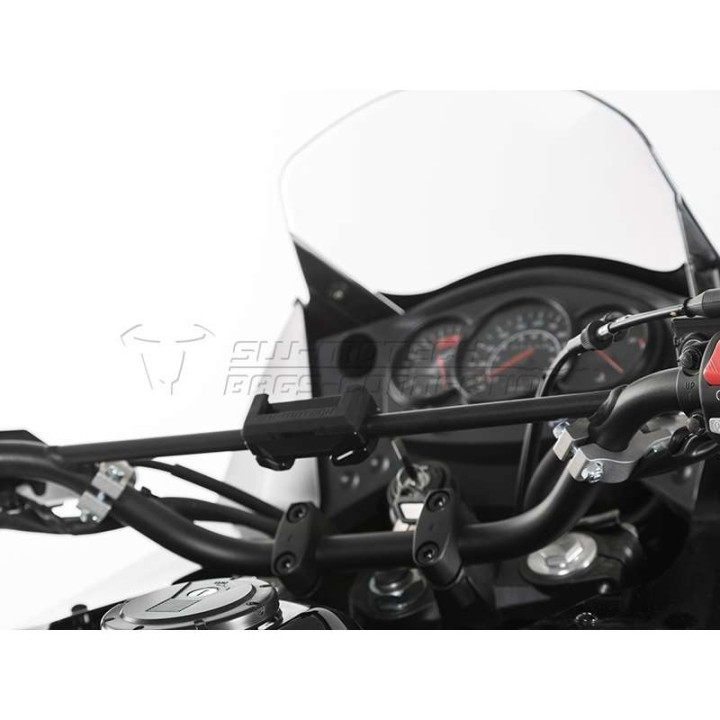

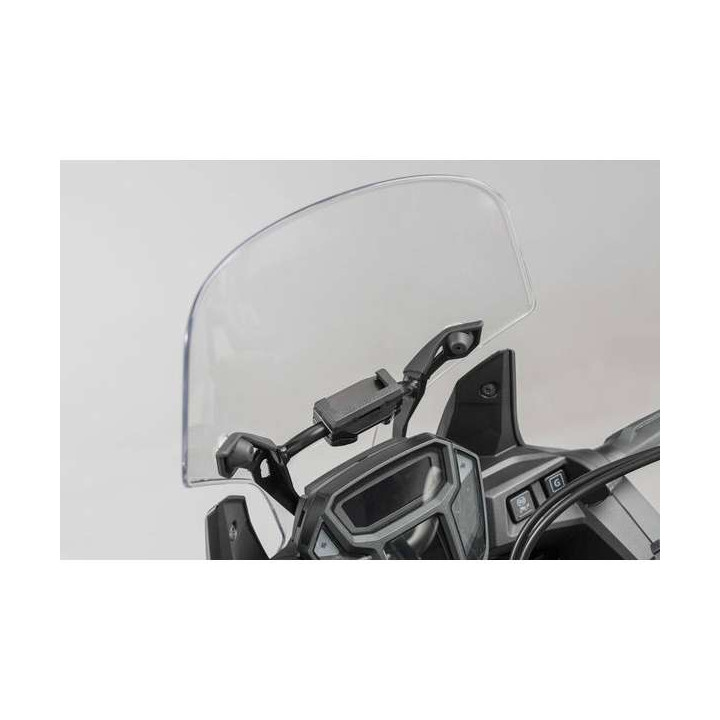

- Mounting on handlebar or bubble reinforcement bar (10/12mm diameter tubular section)
- Detachable upper part
- Pivoting head to adapt viewing angle
- Integrated shock absorbers reduce vibrations transmitted to GPS units
- Compatible with NAVI waterproof bags
- Black anodizing of metal parts
- Reinforced ABS bracket

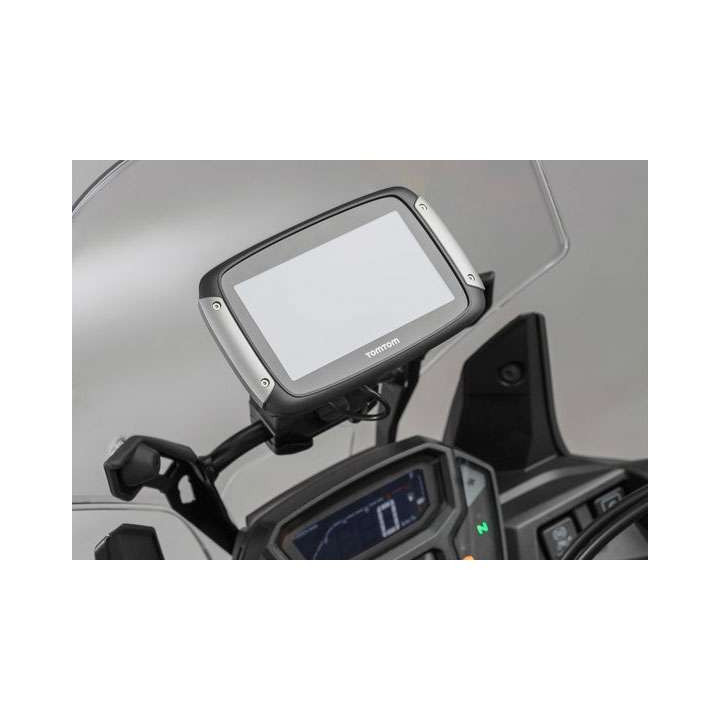

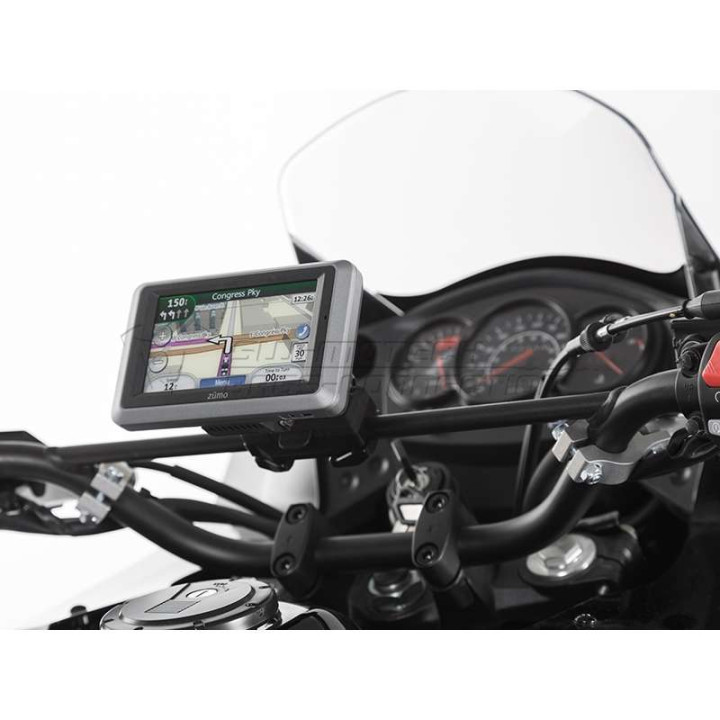

The bracket's integrated plate fits most motorcycle GPS units on the market (TomTom Rider, Garmin Zumo 500 and 550). Please note that an adapter is required for Zumo 340 and 350.

NB: For TomTom RIDER 40 and 400 GPS units, the original mounting screws are too long. Installation is possible, but rotation of the powered bracket is no longer possible. If you wish to preserve this feature, you will need to add 3 mm spacers or use 4 M5x6 screws (not included).

Assembly instructions here
