SW-Motech T-Lock smartphone holder with cover on handlebar/view mirror

Assembly instructions here

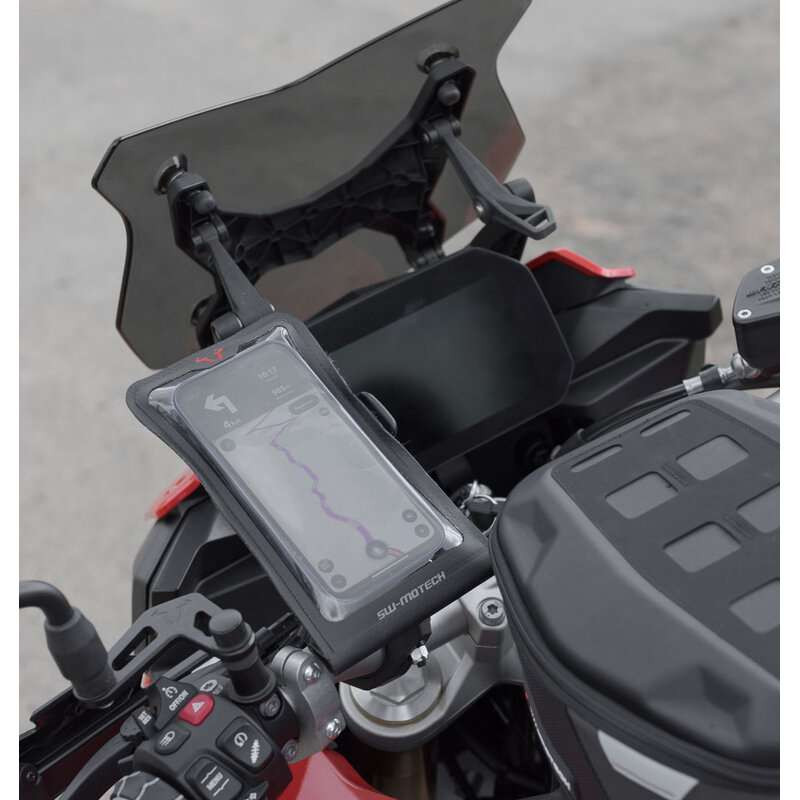

This carefree pack contains a waterproof Drybag case for smartphones and various fasteners. The T-Lock base on the back of the Drybag case allows quick attachment to the universal navigation kit: a quarter turn clockwise is all it takes to mount the case to the mounting arm. The waterproof Drybag smartphone case with PVC window has an internal dimension of 160 x 80 mm, and is suitable for almost all current smartphones up to 6.5".

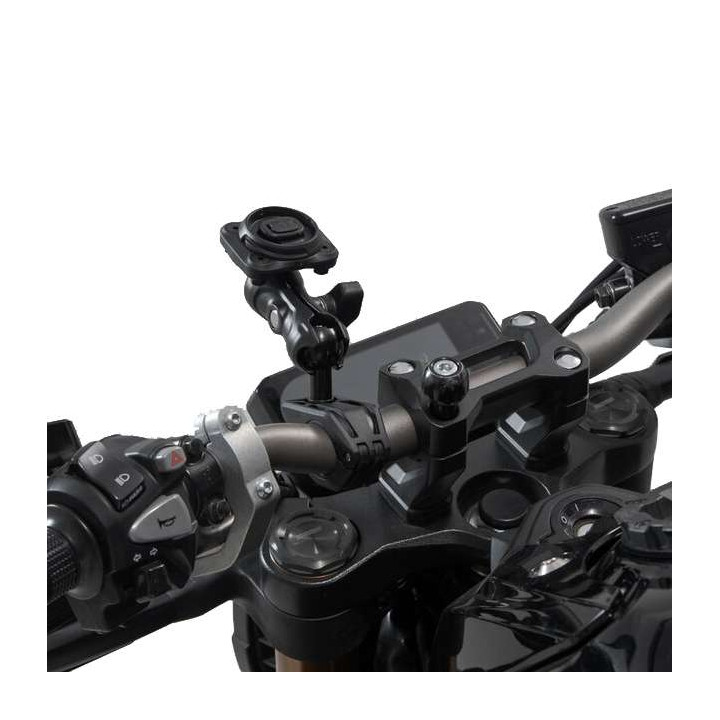

The universal kit offers a variety of mounting options on the motorcycle: the 1" ball supplied can be mounted on an M6 or M8 thread, on the rear-view mirror mount with a clamp, or on the handlebar with a clamp designed for handlebar diameters of 22 mm, 28 mm or 1". A pivoting arm facilitates positioning in the cockpit, allowing the driver to keep the screen in front of him, without losing sight of the instruments.

- Suitable for smartphones up to 6.5".
- Interior dimensions: 160 x 80 mm
- Watertight roll-up closure
- Water-repellent coating
- T-Lock bracket for quick attachment to the mounting arm
- Balls and 2" clamp arm ensure optimum positioning
- Clamp arm can be rotated around two axes up to 90° or 45

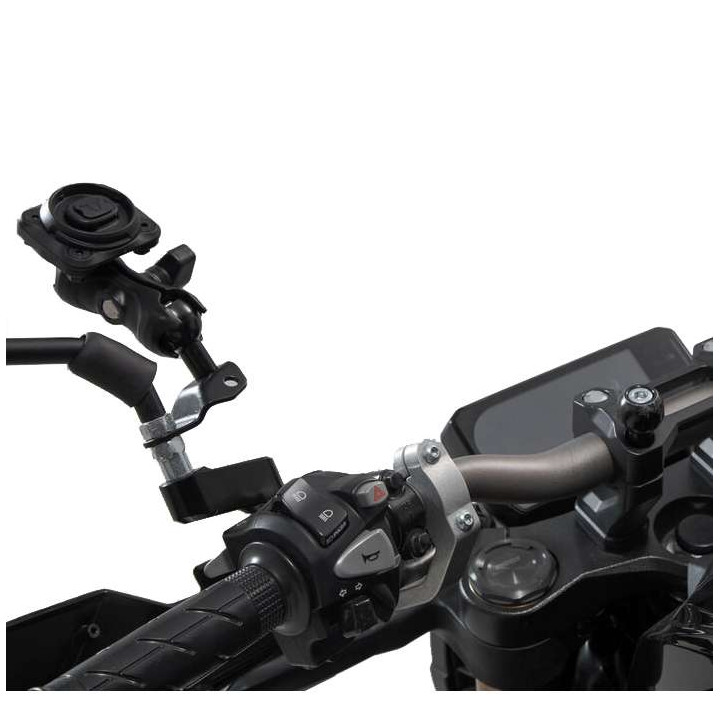

- 1" ball can be mounted on M6 or M8 threads, on the rearview mirror mount or with a clamp
- Mounting clamp for handlebars with 22, 28 mm or 1 " diameter

Includes:

- 1 x Drybag for smartphone
- 1 x Mounting clamp with rubber inserts
- 1 x Ball for M8 thread and M6 converter
- 1 x 2" mounting arm
- 1 x Ball joint with mounting plate
- 1 x T-Lock bracket
- Installation instructions
- Mounting hardware
